The sensors are powered by a 3.6 volt ½ AA lithium battery. If the The Process Origin spike on the thermal profile drops below 750°C (1,382°F), check the battery to see if it has become discharged. Always replace with SAFT lithium battery (LS 1425) or the equivalent specified.
|
|

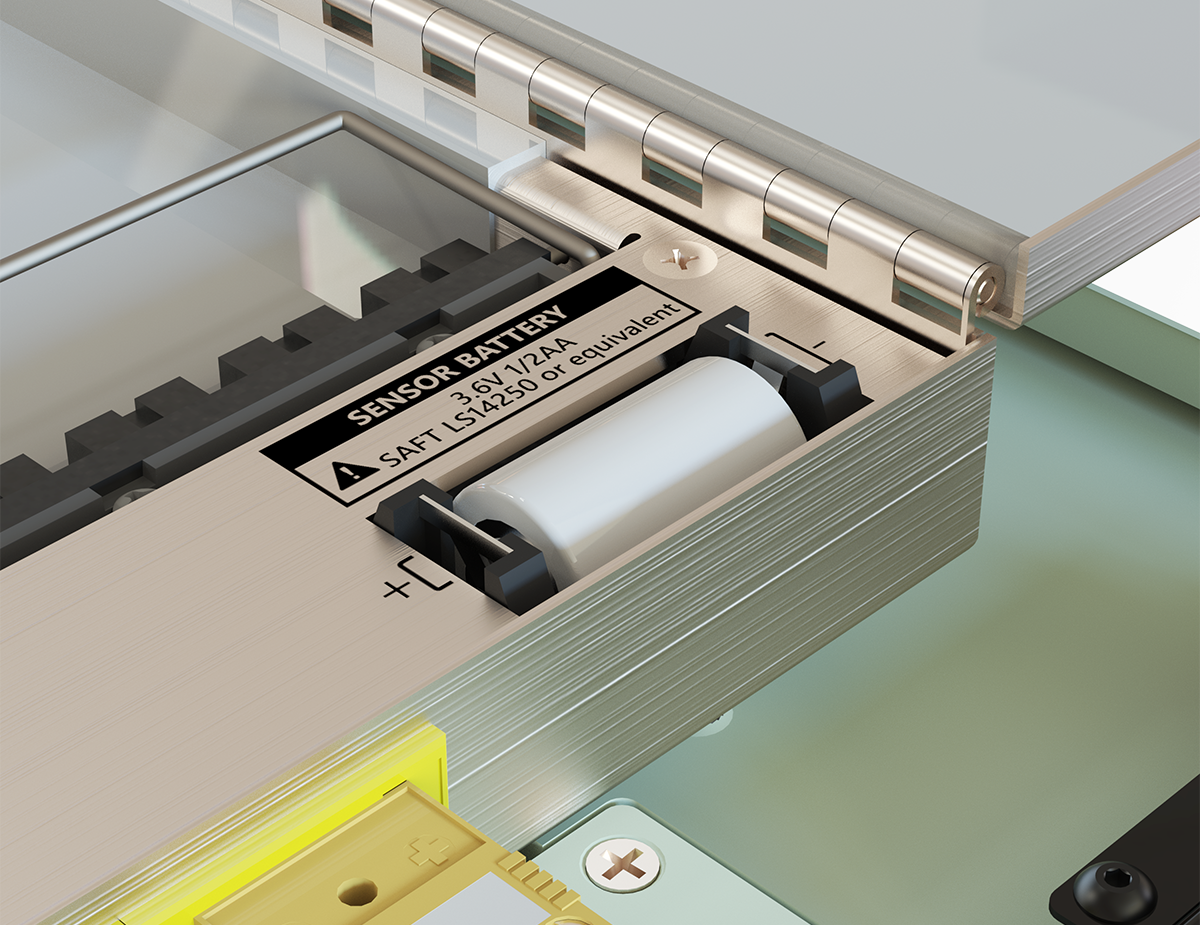

Sensor Batter Click to zoom |

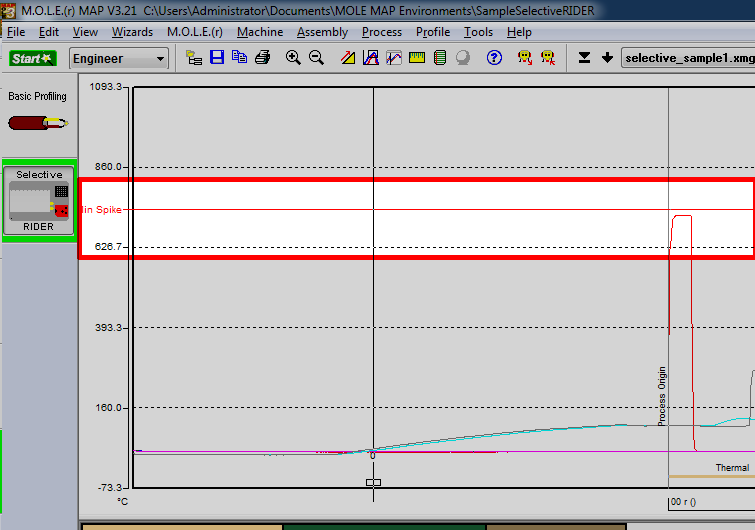

Process Origin Spike Click to zoom |
