When setting machine information, the user is required to select a machine. The software includes basic machine models for the user to select from. If your machine model does not appear in the list the software has the ability for you to create a new machine model.
|
This is available when in MAP is in Engineer Mode. View Menu>Mode>Engineer |
.png "Important Information")
To create a new paste:
| 1) | On the Process menu, click Create New Paste. |

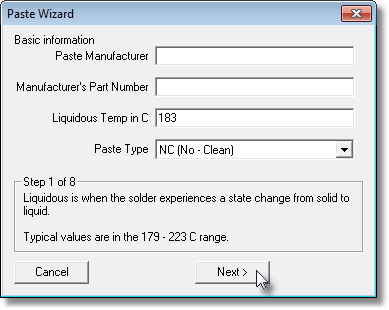

| 2) | Enter the required information and select the Next button. |
| 3) | Enter the RAMP – Slope information and select the Next button. |

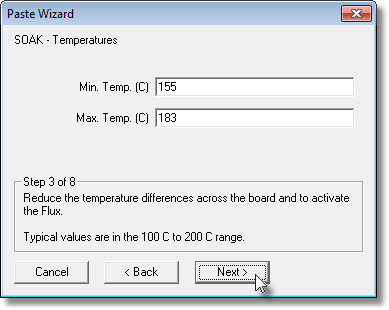

| 4) | Enter the SOAK –Temperatures information and select the Next button. |

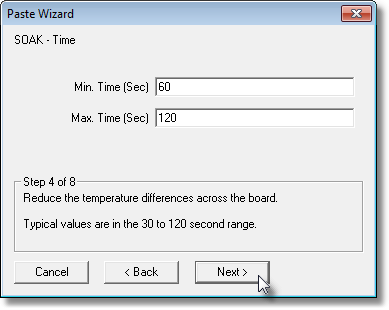

| 5) | Enter the SOAK –Time information and select the Next button. |

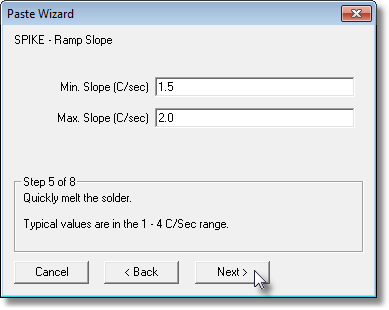

| 6) | Enter the SPIKE – Ramp Slope information and select the Next button. |

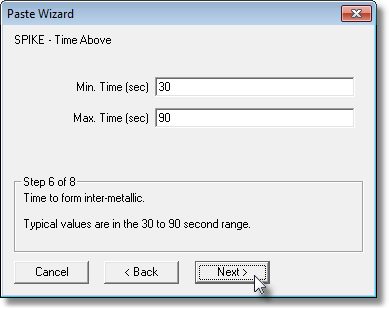

| 7) | Enter the SPIKE – Time Above information and select the Next button. |

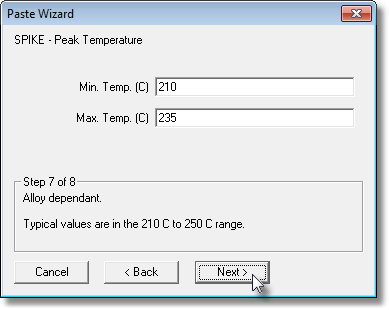

| 8) | Enter the SPIKE – Peak Temperature information and select the Next button. |

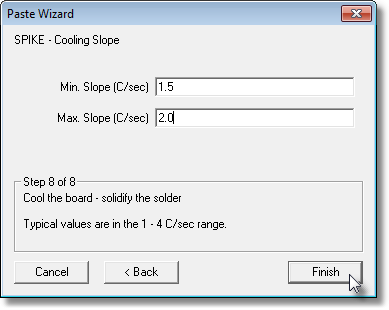

| 9) | Enter the SPIKE – Cooling Slope information and select the Finish button to create the new paste and return to the Paste Specification database dialog box. |
|
Once the user proceeds to each Step, the Back button can be selected to confirm or modify previously entered information. |
.png "Tip")
| 10) | Click the Finish command button to accept, or Cancel to quit the command. |
|
The new process paste will now appear in the Paste drop-down list on the Set Paste dialog box. Refer to topic Set Paste for more information. |
