The ECD Paste database file includes over 500 solder paste specifications. This database is used with all versions of the M.O.L.E.® MAP Software. Newer versions of this database are periodically released by ECD and can be downloaded from ecd.com.
To upgrade a paste database:

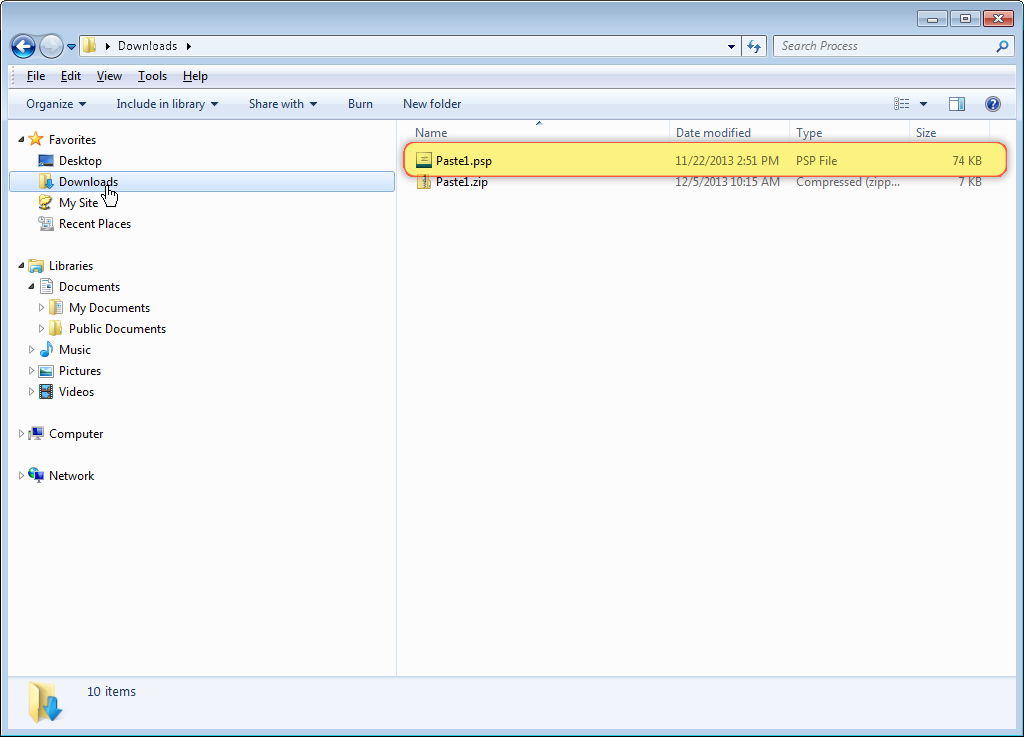

| 1) | Download the Paste1.zip file from ecd.com to a temporary folder and unzip the Paste1.psp database file. |

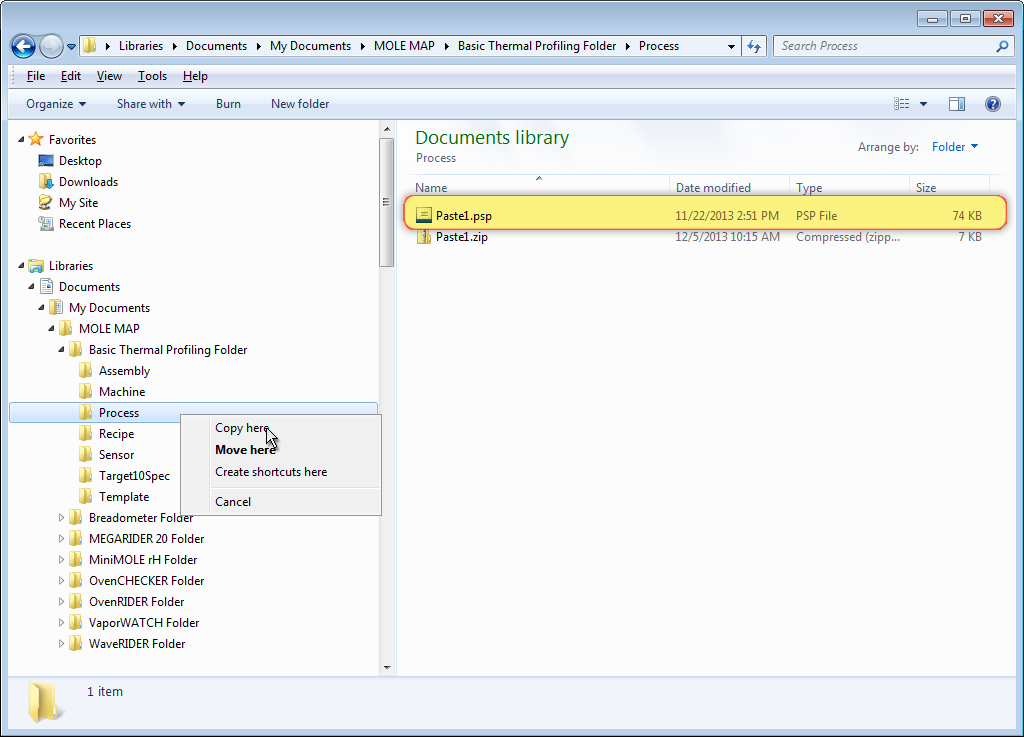

| 2) | Navigate to your Environment folder and copy the Paste1.psp database file to the Process folder. |

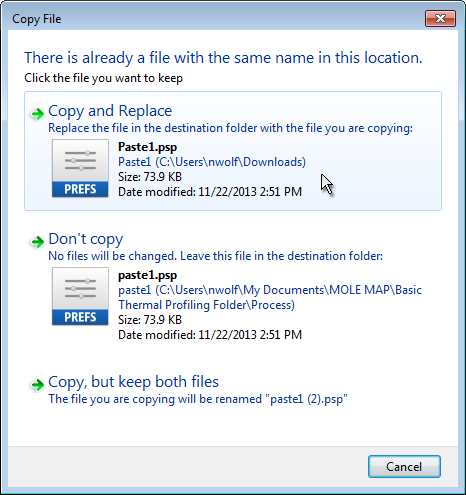

| 3) | When you are prompted to decide which file you want to keep, select Copy and Replace. |
|
Each M.O.L.E.® MAP Environment includes a separate Paste1.psp database file. When updating a Paste1.psp file, you will need to add the new Paste1.psp file to each Process folder in all applicable Environments. |
.gif "Important Information")
| 4) | Upgrade process complete. The new paste database is now available to use. |
