The Get Started command is a blank state starting point where users can choose from five different M.O.L.E.® MAP workflows. A MAP workflow is a wizard of steps based on which option is selected which help guide a user.
|
The dimmed workfows are associated with the Verify mode and can only be used when in Engineer mode. |
.png "Important Information")

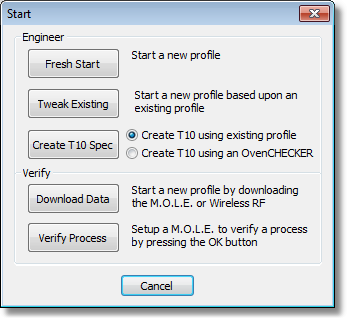

Engineer Mode |

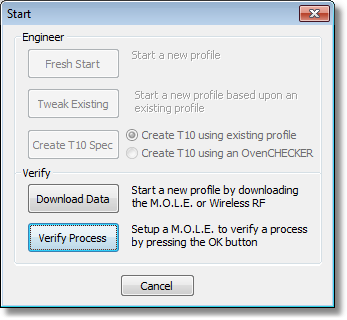

Verify Mode |
|
|
|

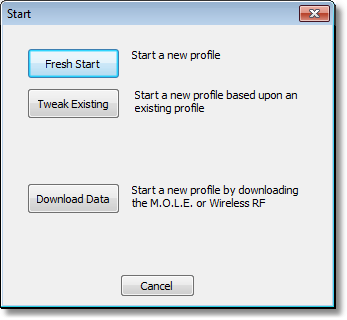

If the Process menu and related Process information are hidden using the Show options on the Process tab in Preferences, the feature appears as shown. |
Workflows:
•Fresh Start: Start a new profile (data run) by entering Machine (oven), Assembly (board) and Process (Paste) information.
•Tweak Existing: Start a new profile (data run) based on an existing profile.
•Create Target 10 File: Create a Target 10 Specification using an existing profile (data run) or OvenCHECKER™.
•Download Data: Start a new profile (data run) by downloading the M.O.L.E. Profiler.
•Verify Process: Setup a M.O.L.E. Profiler to verify a process by presetting the OK button.
The Get Started command can be accessed on the Toolbar and Get Started dialog box.
|
New (Start) button. |
