The M.O.L.E. menu commands configure a M.O.L.E. Thermal Profiler for collecting process data and manage thermal profiles.

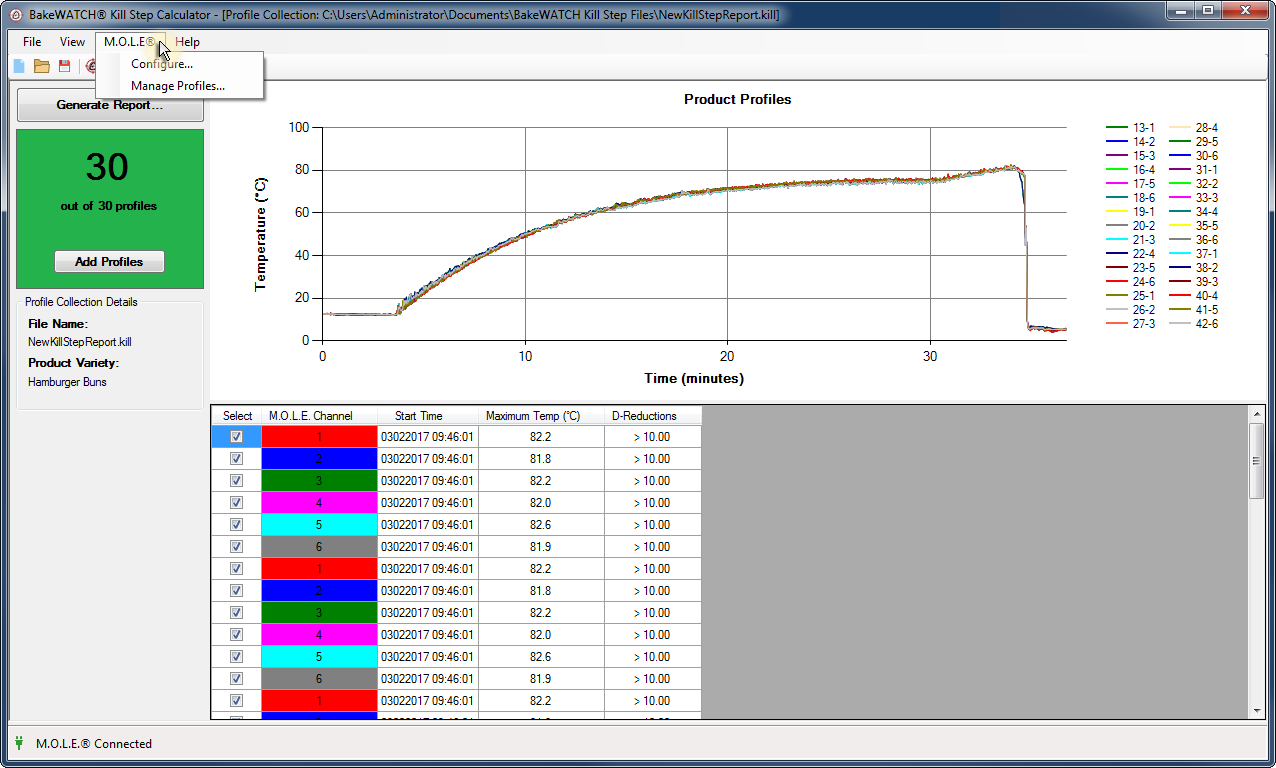

M.O.L.E.® Menu Commands:
.png)
Configure...
To configure a M.O.L.E.:
| 1) | Connect the M.O.L.E. Thermal Profiler to the computer. |
|
BakeWATCH® Kill Step Calculator software can only communicate with one M.O.L.E. Thermal Profiler at a time. If two are connected to a computer, disconnect the M.O.L.E. that is not being used. Additionally, it is recommended that ECD M.O.L.E.® MAP software and BakeWATCH® Kill Step Calculator are not be used at the same time. If M.O.L.E.® MAP software is running, please close before proceeding. |
.png){kind=small}
| 2) | On the M.O.L.E. menu, click Configure and the dialog appears. |
.png)
|
The Status tab on the Configure dialog box also allows the user to be able to view the current configuration settings stored in the M.O.L.E. Thermal Profiler. This is useful to confirm if the current settings need to be changed or to confirm any settings after they have been changed.
|
.png){kind=small}
.png)
| 3) | Set the M.O.L.E.® name. |
.png)
| 4) | Set the recording Log interval. This is the time between each data point measured by the M.O.L.E. |
|
A 1 second setting is the most common log interval for M.O.L.E. Thermal Profiler. |
.png)
| 5) | Select or clear the Synchronize the M.O.L.E. clock to PC clock check box. When checked, sends the PC's current date and time to the M.O.L.E. |
.png)
| 6) | Change/Adjust the Wait time before M.O.L.E. communication (milliseconds). |
|
Advanced use only: This configuration is used when a very fast computer tries to read information from the M.O.L.E. to quickly, and the M.O.L.E. is not fast to respond. |
.png){kind=small}
.png)
| 7) | When finished, click the OK command button to send current configuration to M.O.L.E. and closes the dialog box. |
Manage Profiles...
|
Deleting profiles cannot be undone so use this process with caution. |
To Manage M.O.L.E. Profiles:
| 1) | Connect the M.O.L.E. to the computer. |

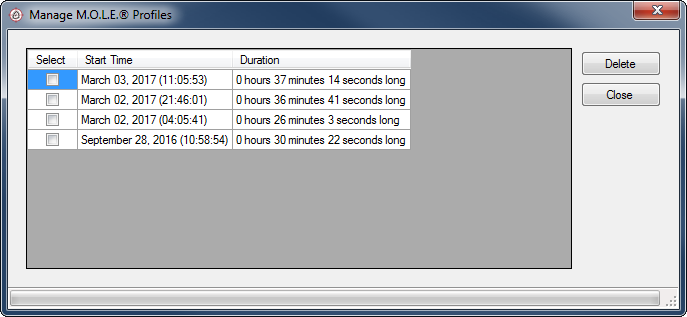

| 2) | On the M.O.L.E.® menu, click Manage Profiles and the dialog appears. |
.png)

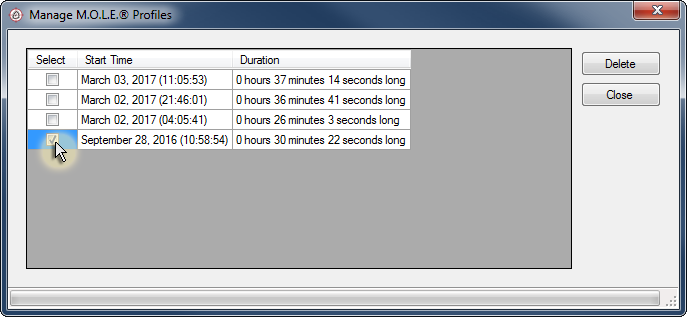

| 3) | Select the corresponding check box for each profile that is to be deleted. |
.png)
| 4) | Select the Delete command button. This deletes the selected profiles from the M.O.L.E. |
.png)
| 5) | Select the Done command button to finish and close the dialog box. |
.png)
