To add or edit X-Axis Values content:
| 1) | Right-click a template cell and a shortcut menu appears. |
| 2) | Select Add Content or Edit Content from the shortcut menu and the Add or Change a Calculation wizard appears. |
|
When navigating through the wizard, the step list on the left uses a color key to inform the user of the current step, steps that have been completed and remaining steps.
|
.png "Important Information")

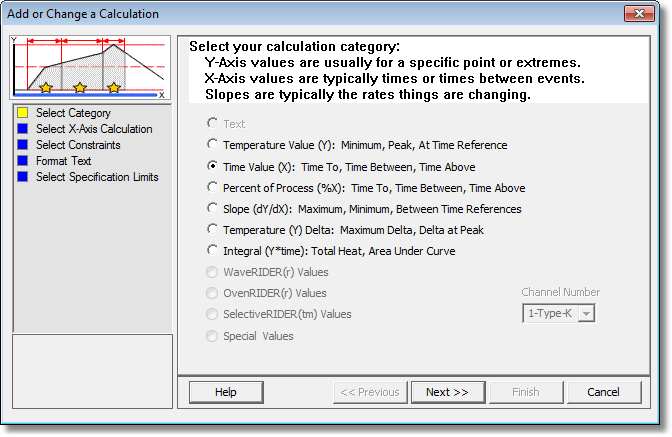

| 3) | Click Time Value (X). |
| 4) | Select the Next command button. |

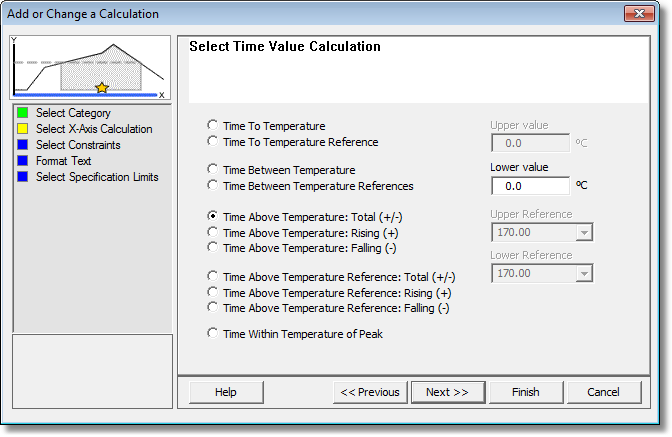

| 5) | Select a Time (X) Axis Value. |
|
If any Temperature Reference (Y) calculation is selected, the software requires a Temperature (Y) Reference Line to be established. Refer to topic Add Temperature (Y) Reference Lines. |
.png "Tip")
| 6) | Select the Next command button. |

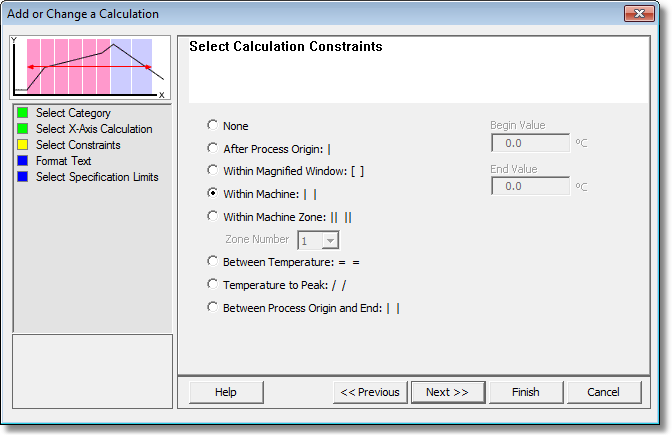

| 7) | Select the calculation constraints. These options are the specified area on the Time (X) Axis where the values are to be extracted from. When a constraint is applied, the constraint symbol appears in the header of the calculation. |
|
If the Within Magnified Window constraint is selected and the Magnify tool is used to zoom in on a portion of the Data Graph, the Data Table displays the statistics for those values within the magnified window. |
| 8) | Select the Next command button. |

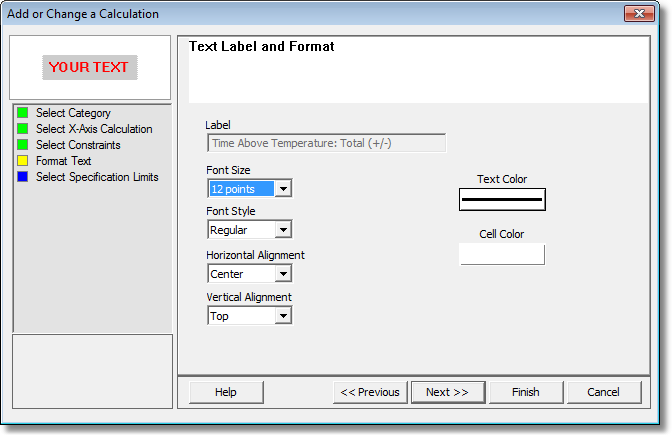

| 9) | Select desired text formatting options. |
| 10) | Select the Next command button. |

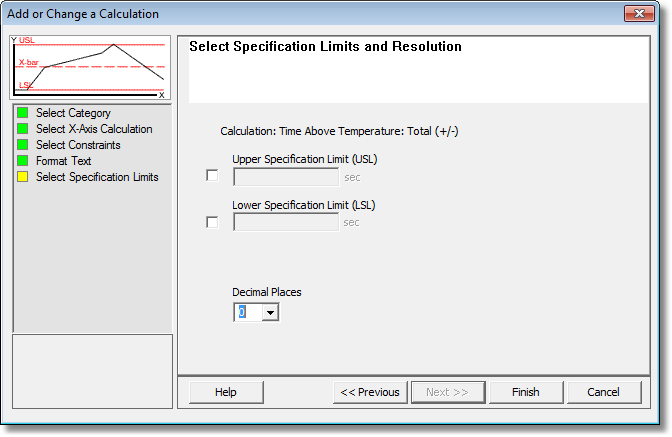

| 11) | Select Specification Limits and Units. If these values are violated colored bars will appear in the formatted template cell. Refer to topic Software>Page Tabs>Profile>Data Table>Template>Specification Limit Indicators for more information. |
| 12) | Select the Finish command button to complete the wizard and display the new calculation data in the selected template column. |
