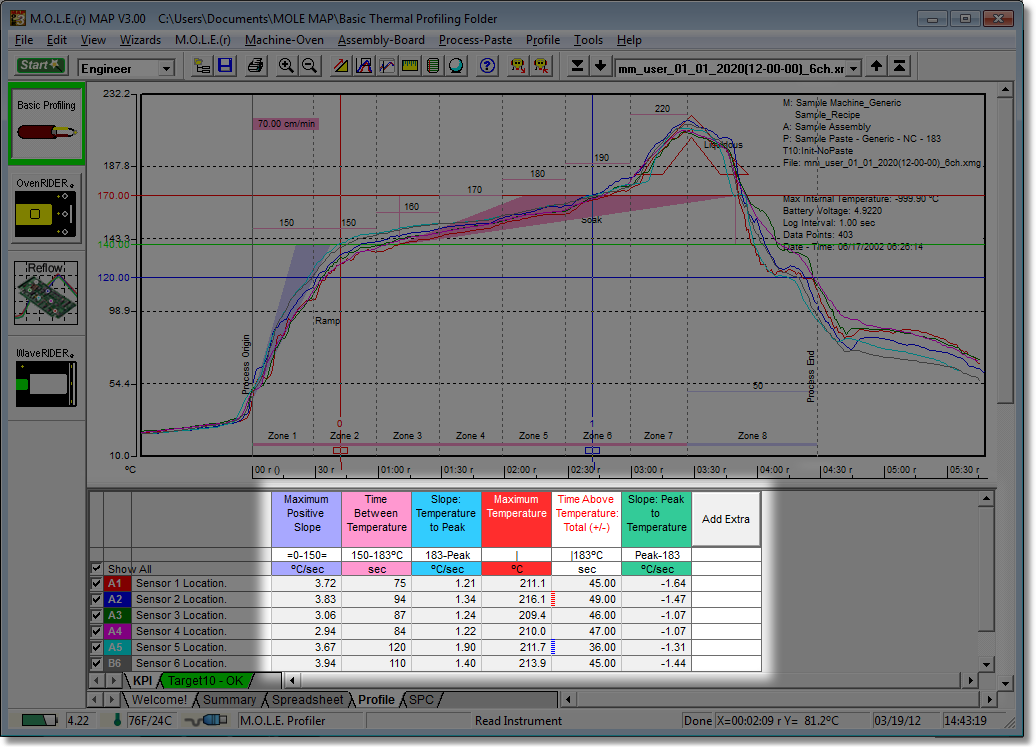

The Data Table is built using a template file (*.TPF) overlaid on a cell grid. Columns to the right of the Channel check boxes and Sensor Locations allow the user to define parameters using the Template commands.
|
The Data Table template is automatically loaded every time the software is started and is used as the default template for every downloaded data run. This template file is specified on the Profile Page Tab of the Preferences dialog box. Refer to topic Profile for more information. |
.png "Tip")

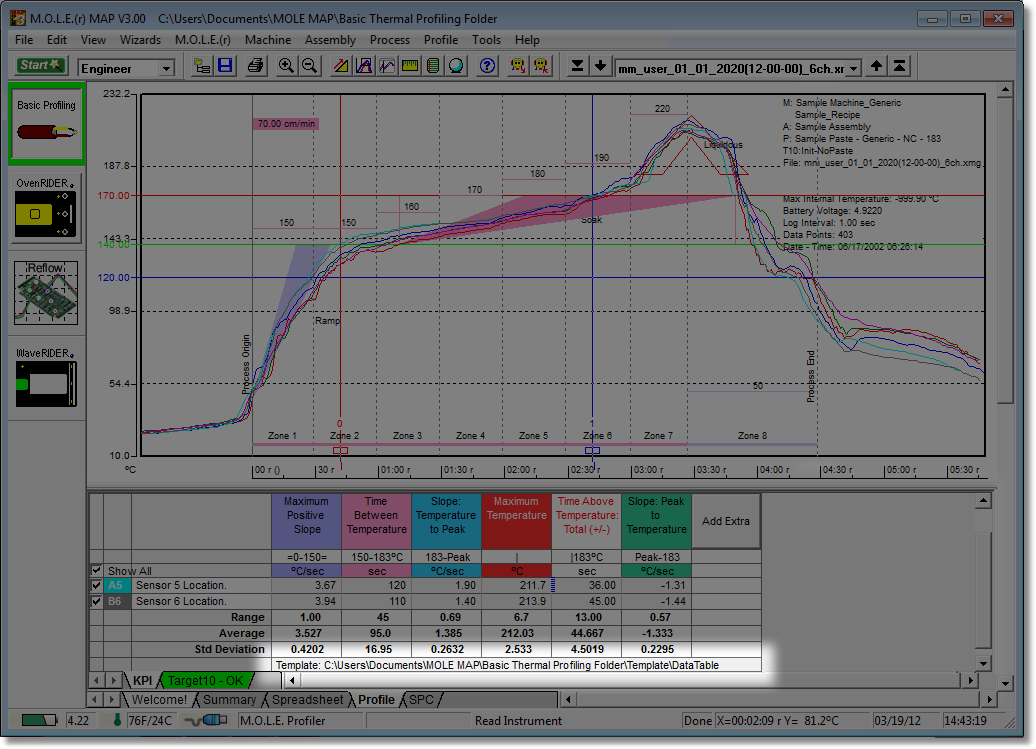

For reference, the file name for the loaded template appears in the lower left corner of the template grid.
To display Template commands:
| 1) | Move the mouse pointer over a column header. |
| 2) | When the mouse pointer becomes a .gif "Calculation Wizard Cursor"){kind=small} , right-click and a shortcut menu appears. |
|
Template commands can also be accessed on the View menu. Refer to topic View Menu for more information. To add or edit a calculation refer to topic Add & Edit Content for more information. |
|
|
.gif "Visual Tutorial")
