RIDER Coupon Replacement

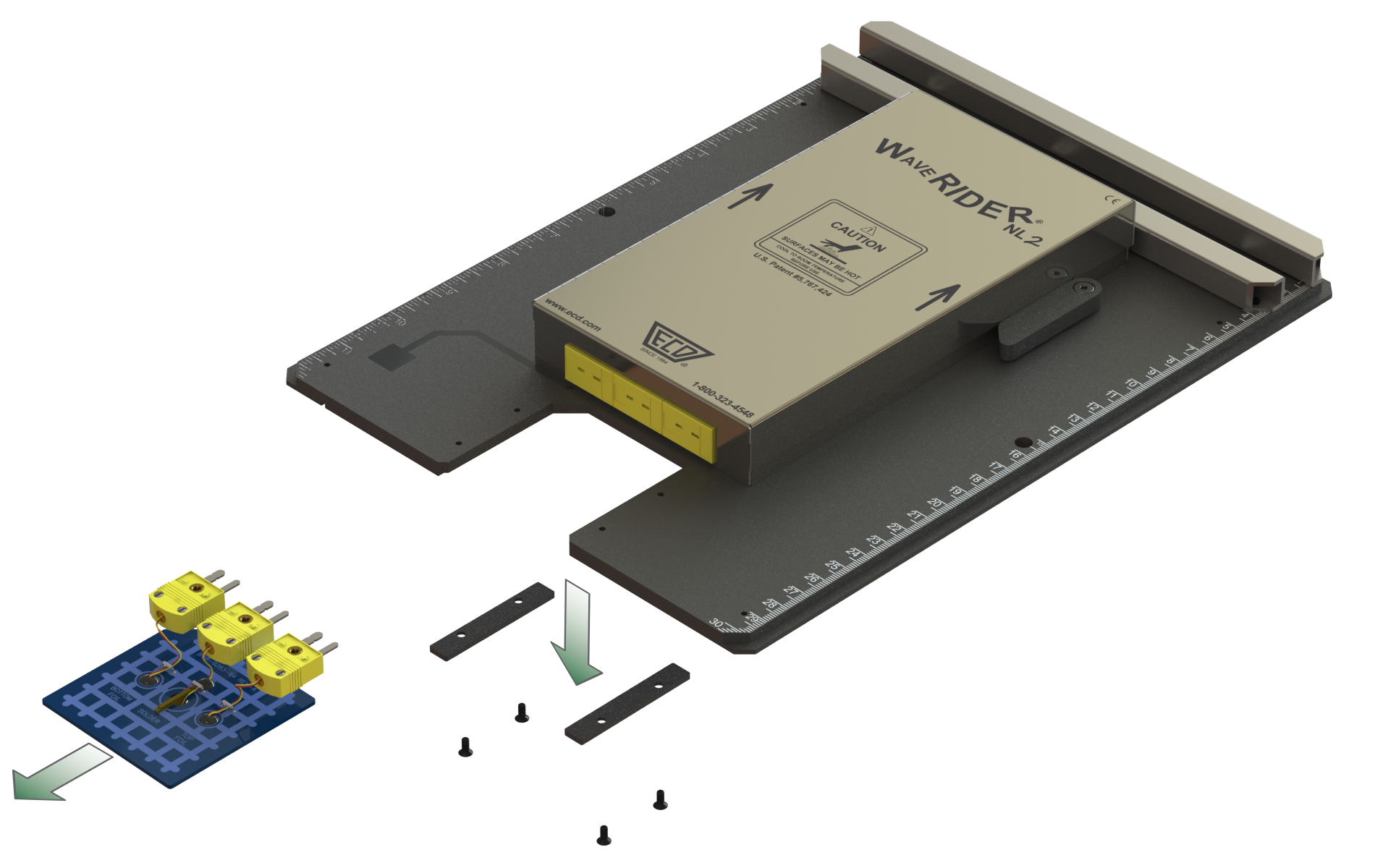

To install a replacement WaveRIDER® NL 2 coupon, the old or damaged coupon must first removed. Use the following steps to remove and replace the coupon:
| 1) | Unplug the Male Type “K” thermocouple connectors from the female connectors. |
| 2) | Loosen the coupon guides by unscrewing the four black screws. |
.png "Caution")
|
It is recommended to clean the accumulation of flux that may have built up in the coupon support groove.
|
| 3) | Slide the replacement coupon assembly into the bottom coupon support grove. |
| 4) | Replace the coupon guides and align them with the coupon support holes. |
| 5) | Place the four screws in the holes and tighten them snugly. |
| 6) | Plug the three Type “K” male coupon thermocouple connectors into the three Type “K” female coupon thermocouple connectors. |
