Because the VaporWATCH® is powered by a rechargeable battery, it is important that it is charged and operating properly.
|
When charging the battery the unit must be turned “OFF”. If it is not “OFF” the unit will not charge properly and the “charging “ LED will not illuminate. |
Charging:

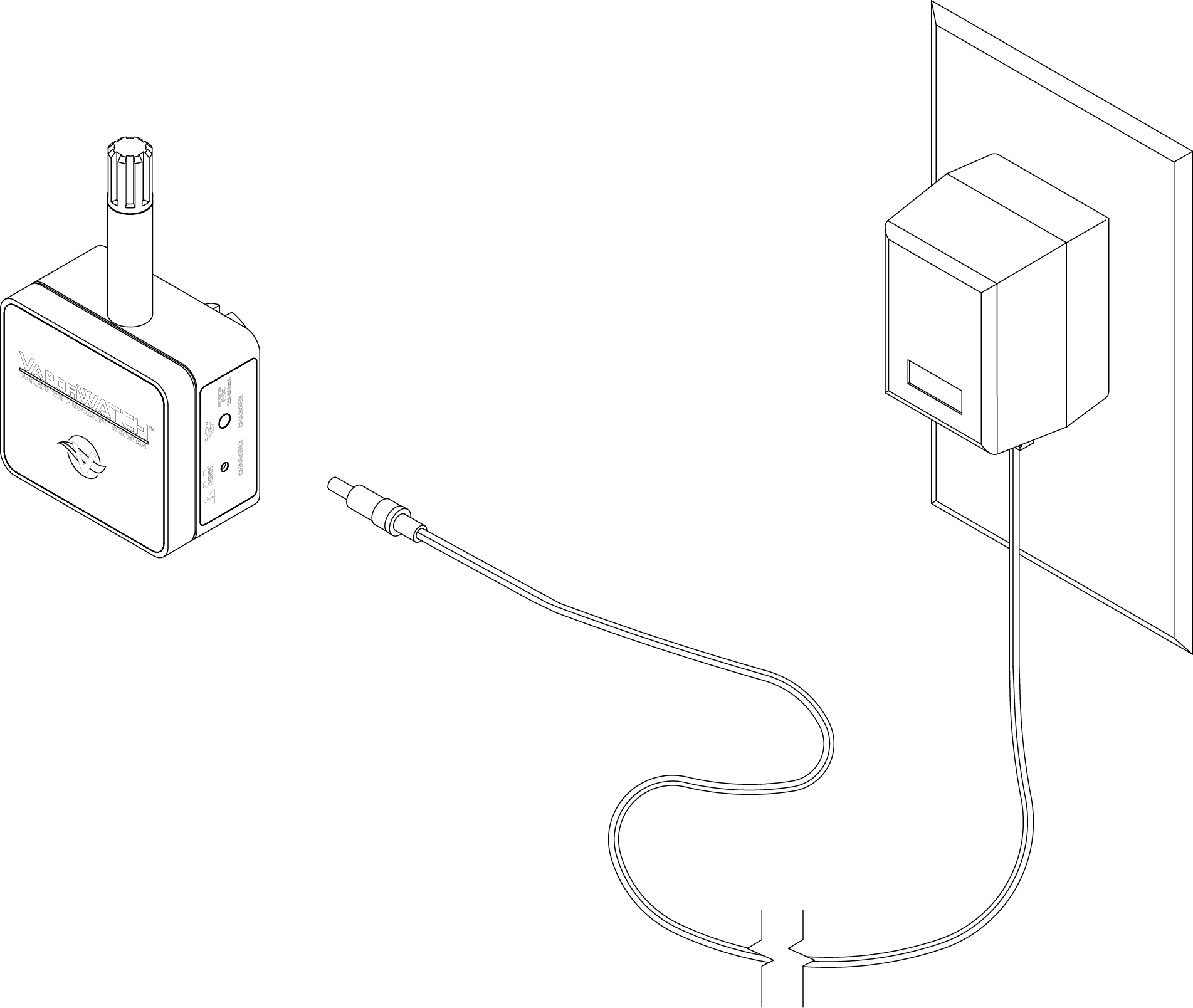

| 1) | Plug the transformer into a wall outlet and the connector end into the Charging connection. When the unit is charging the Charging LED will illuminate. |

|
A completely discharged battery takes about 14 hours to be fully charged. |
| 2) | After the charging cycle is complete the V-M.O.L.E.™ is ready to use. The battery can continue to be charged however, if it is going to sit idle for five days or more, you may want to disconnect the charger. |
