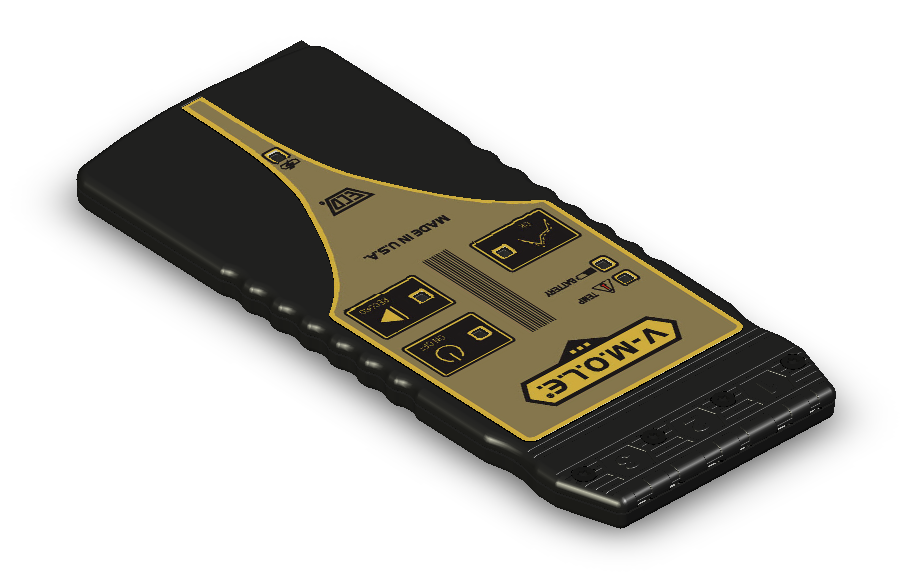

The V-M.O.L.E.™ Profiler is a compact and durable thermal profiling instrument ECD offers. One end has input connectors for attaching up to (3) sensors and the other end is the internal Power Pack.
Features/functions:
•Thermocouple/Inputs:This is where Type “K” Thermocouple sensors are connected.
•Buttons: ON/OFF, Record & OK.
Button: |
Action: |
ON/OFF |
Turns Profiler "ON/OFF". |
Record |
Starts/Stops Profiler recording data. |
OK |
Invokes "OK" process where the last recorded profile is compared to pre-configured criteria resulting in a "Pass" or "Fail" mode. |

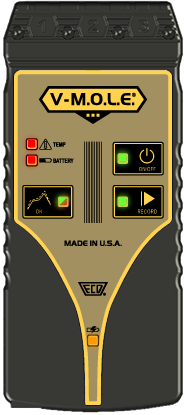

•Activity indicators: These are LED's that indicate what state the Profiler is in. Refer to the illustration and table below.
LED: |
Action: |
LED Color |
|
ON/OFF |
Indicates Profiler is "ON" and idle |
Green (Solid) |
|
Record |
Indicates Profiler is recording data |
Green (Flashing) |
|
OK |
Indicates recorded profile passes pre-configured criteria using the Target 10-OK tab in the software. |
Green - Pass (Solid) Red - Fail (Solid) |
|
Temp(erature) |
Indicates if the internal temperature is at or above a certain threshold. |
Red (Solid) >40°C |
|
Battery |
Indicates when the internal Power Pack voltage is low |
Red (Solid) <3.0V |
|
Charge |
Indicates when the internal Power Pack is charging |
Yellow (Solid) |
