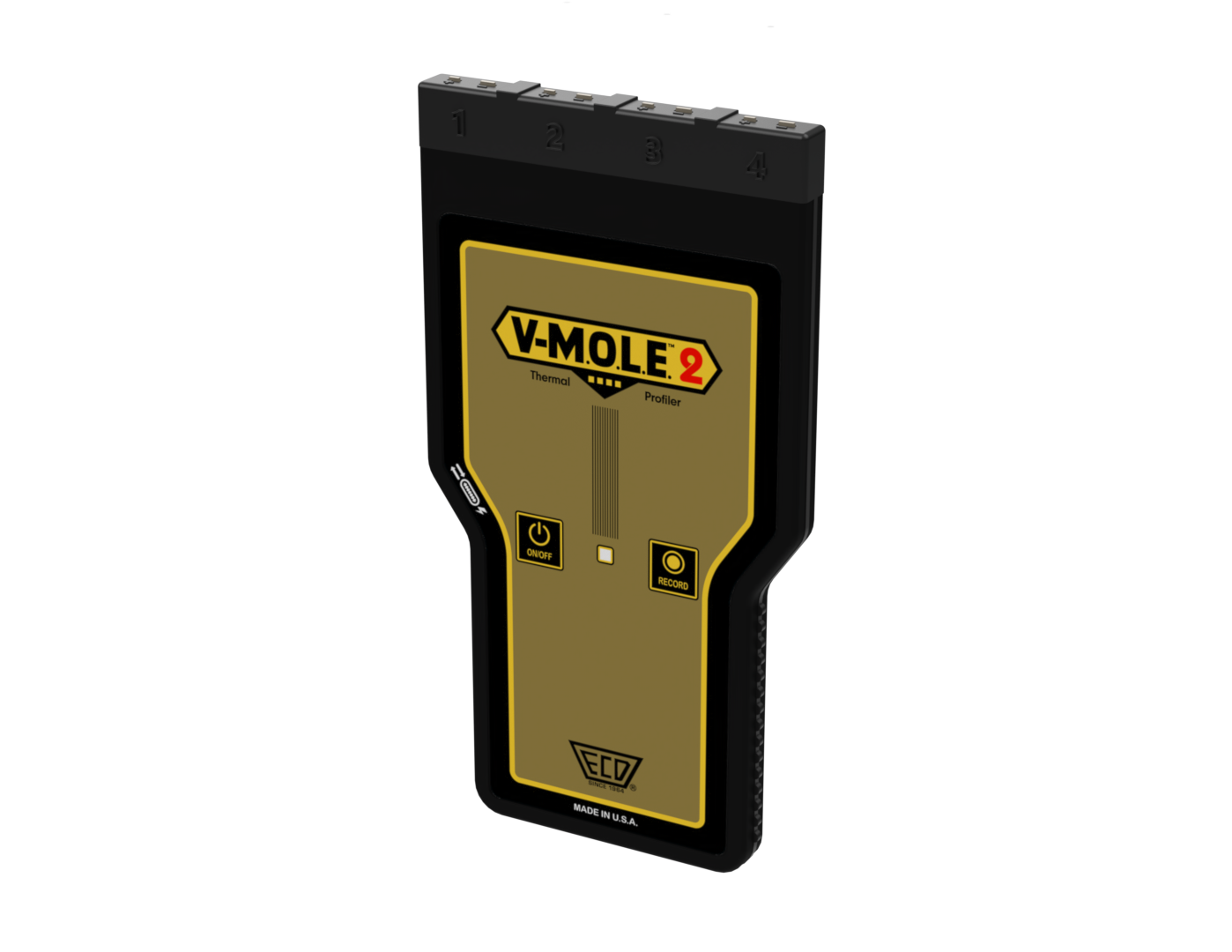

The V-M.O.L.E.™ Profiler is a compact and durable thermal profiling instrument ECD offers. One end has input connectors for attaching up to (3) sensors and the other end is the internal Power Pack.
Features/functions:
•Thermocouple/Inputs:The inputs are where thermocouples and optional are connected.
•Data/Charging Port: This port is located on the left side of the M.O.L.E. thermal profiler. This is used to transfer data through a USB-C to USB-A computer Interface cable to the computer and charge the internal Power Pack.
•Buttons: ON/OFF & Record.
Button: |
Action: |
ON/OFF |
Turns M.O.L.E. thermal profiler "ON/OFF". |
Record |
Starts/Stops M.O.L.E. thermal profiler recording data. |

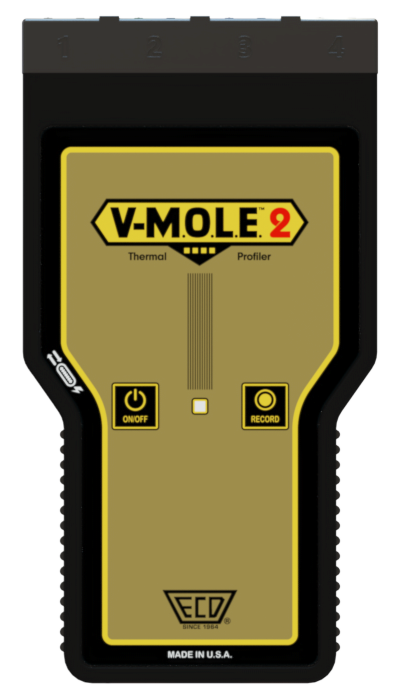

•Activity Indicator: These are LED's that indicate what state the V-M.O.L.E.™ 2 thermal profiler is in. Refer to the illustration and table below.
LED Color: |
Solid: |
Flashing |
|
||
Green |
Indicates M.O.L.E. thermal profiler is "ON" and idle |
|
Indicates M.O.L.E. thermal profiler is recording data. (Log Interval: 1 sec., flash each log, < 0.5 sec., flash 4 times per sec., > 1 sec., flash every 2 seconds) |
|
|
Yellow |
Power ON. LED illuminated for 3 seconds during system check |
|
- |
|
|
Red |
- |
- |
Flashes 5 times to indicate when the internal battery voltage is low or internal temp is at or above a threshold or all channels are OFF or when the memory is full |
|
|
