Sensor Platforms > SelectiveRIDER

This section covers brief descriptions for the exterior and interior features of SelectiveRIDER®.

External features:

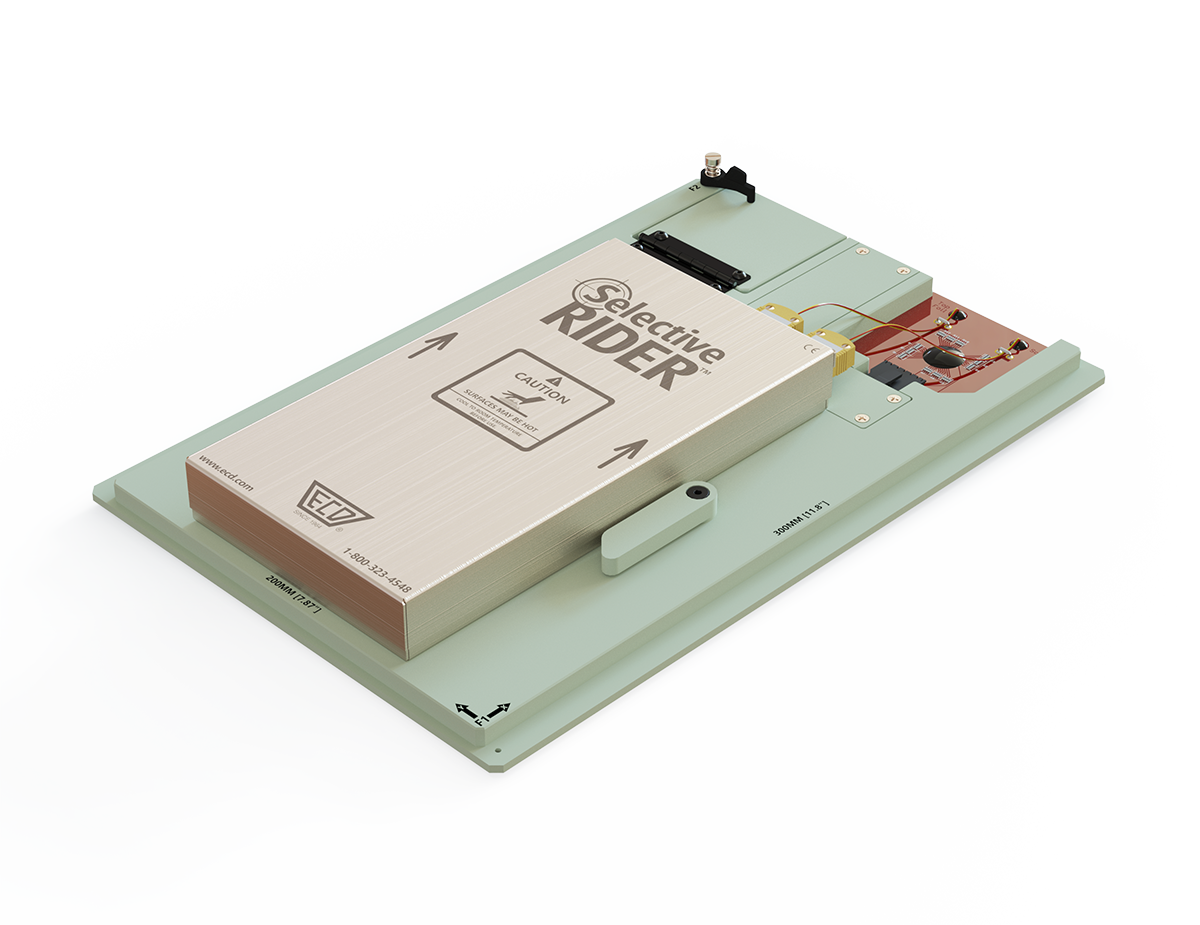

selectiverider_(closed)

•Thermal Barrier: This is the protective barrier for the M.O.L.E. Profiler. Provides easy docking and automatic M.O.L.E. log rate configuration.

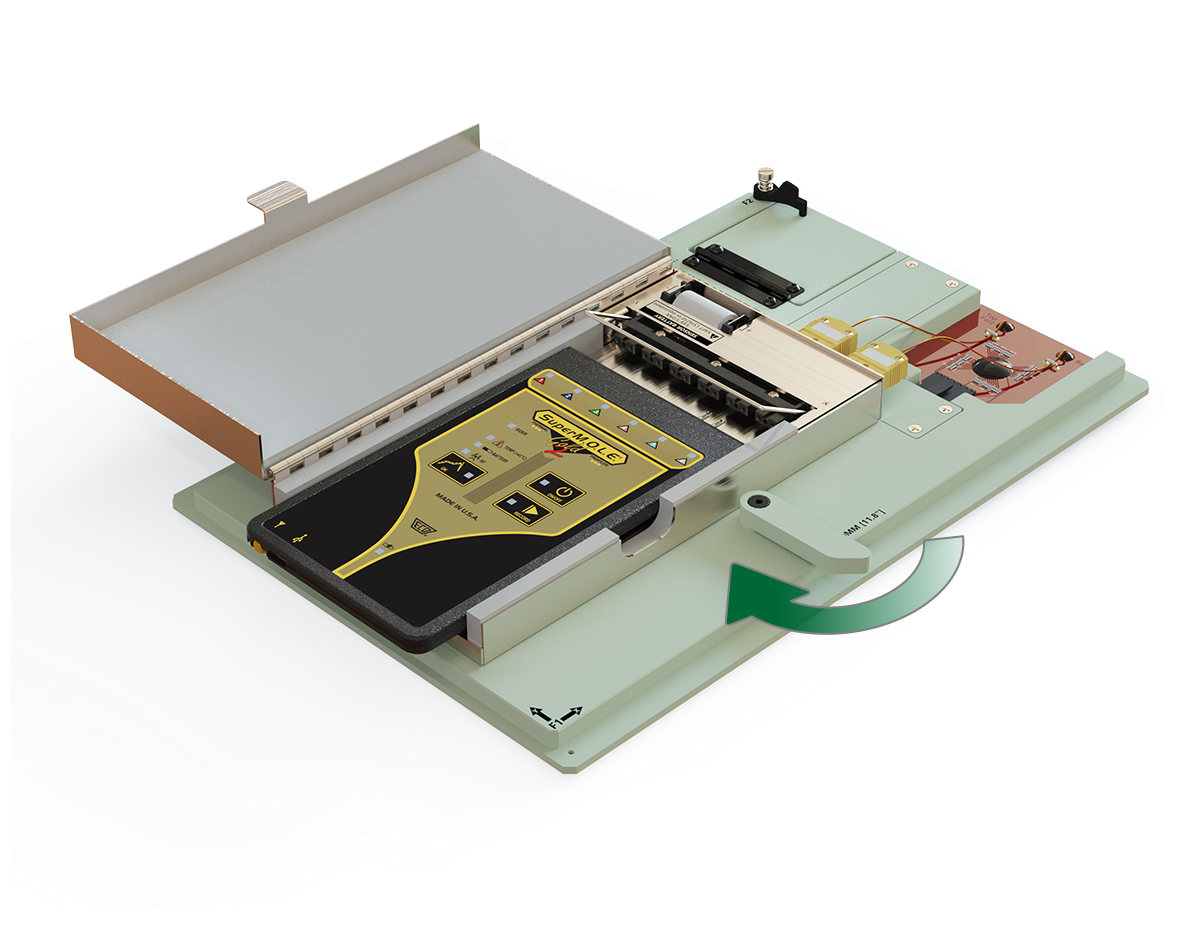

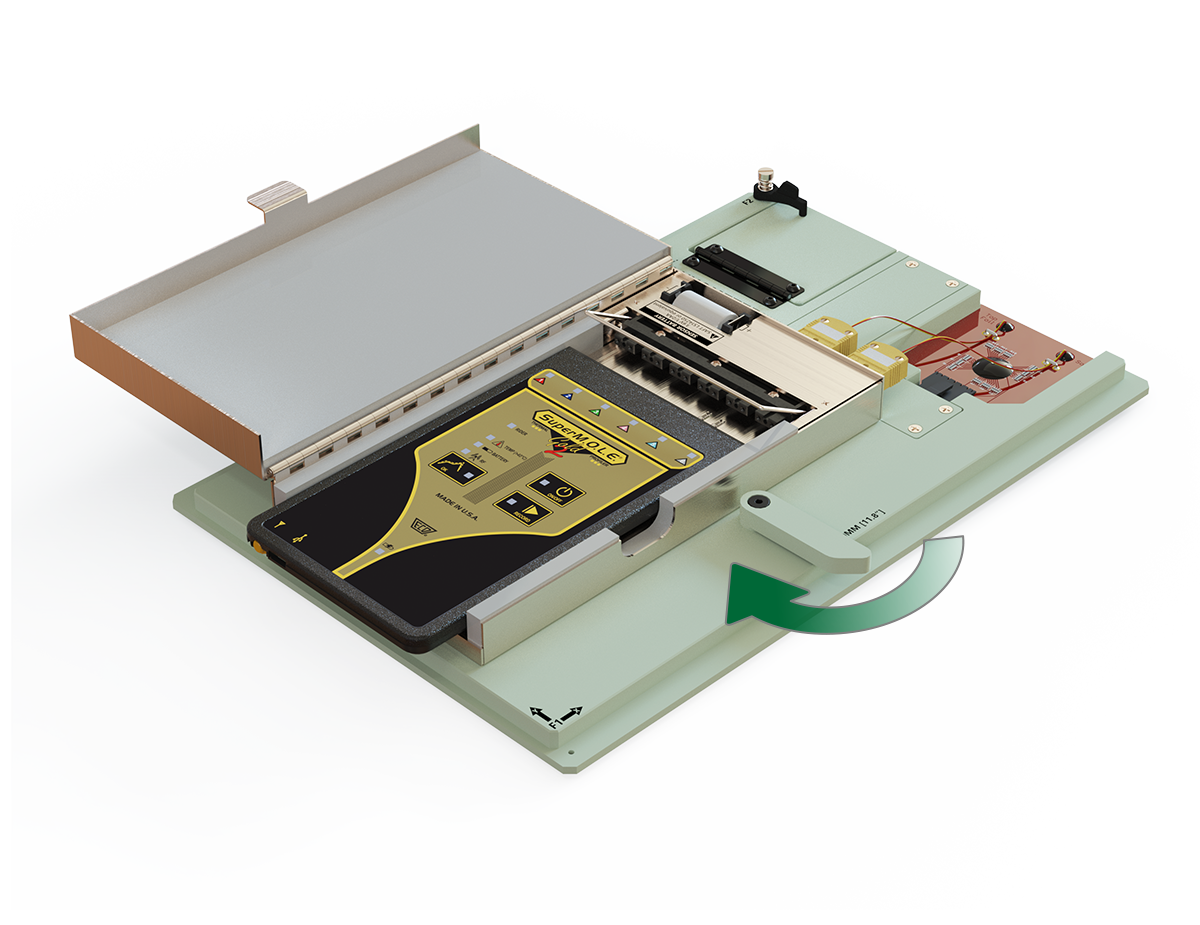

•Barrier locking latch: This latch secures the cover of the thermal barrier preventing it from opening during operation.

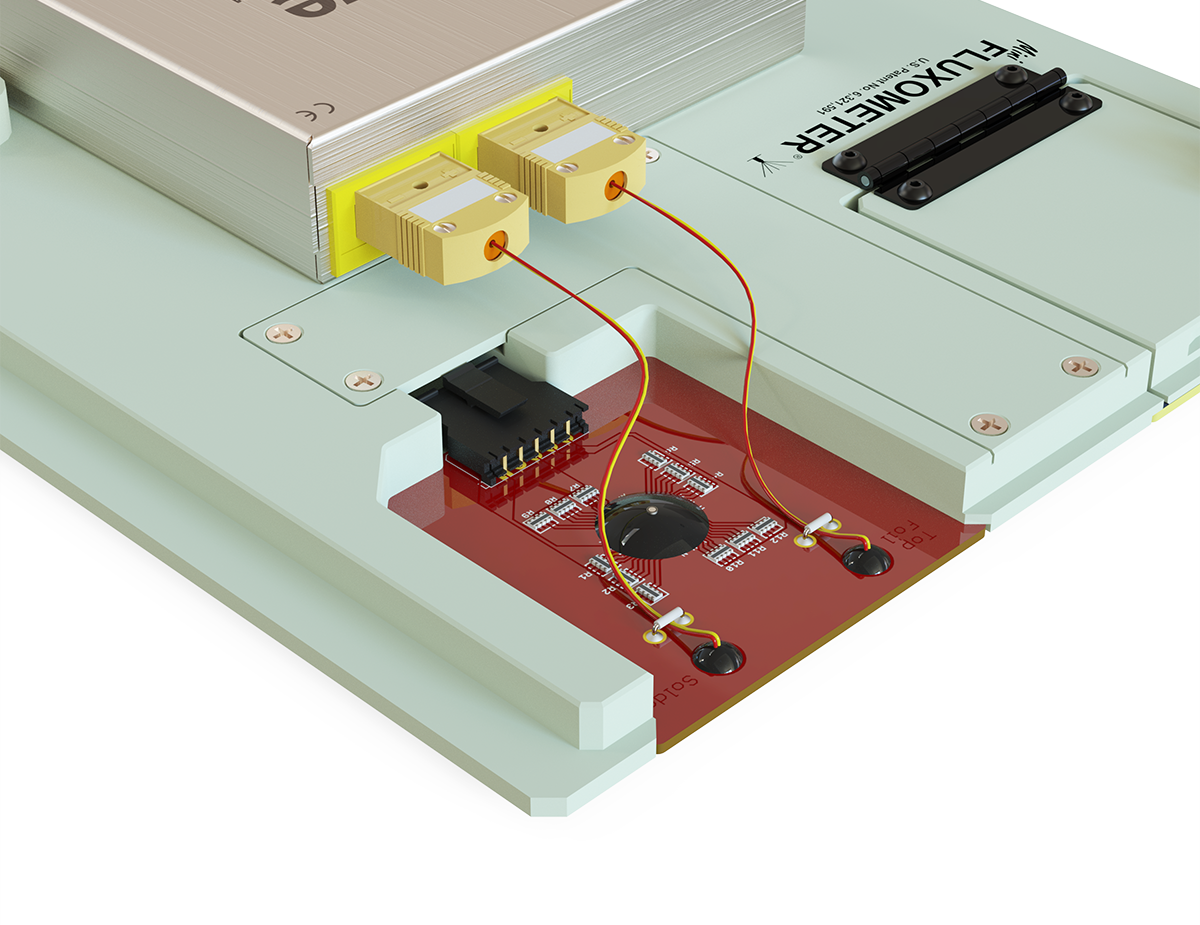

•Dynamic X/Y Sensor: Measures both X and Y position from target center and board bottom fountain diameter.

SelectiveRIDER®+ Coupon

(Click to zoom)

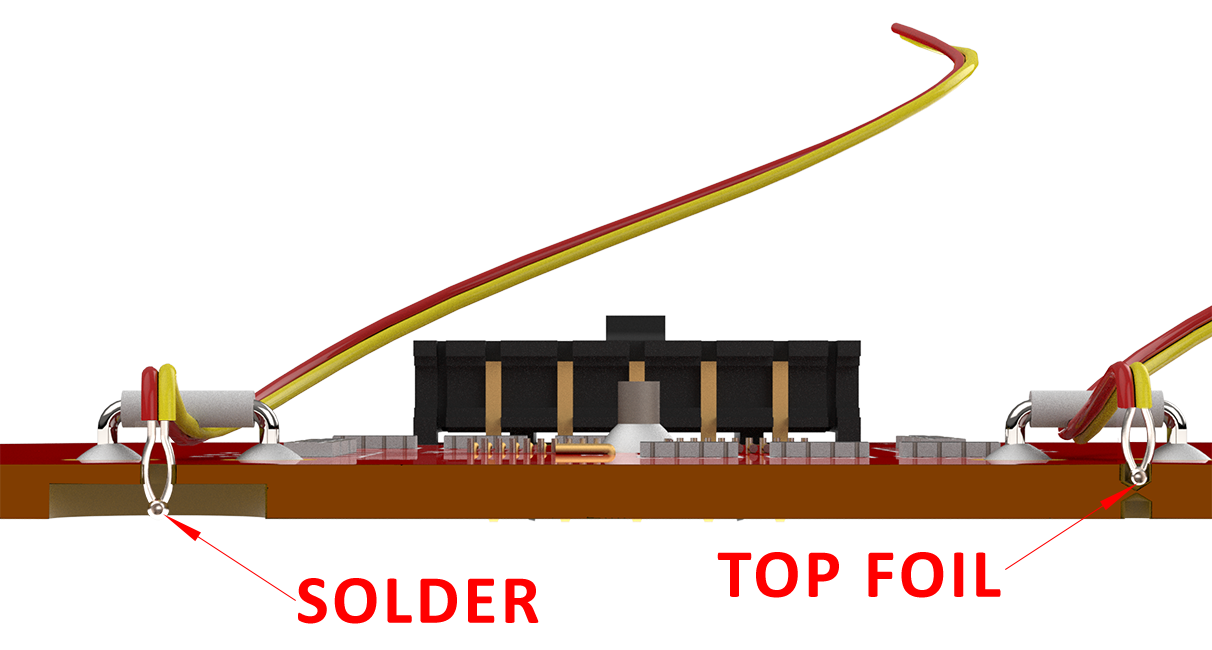

The "Solder" T/C is exposed below the bottom surface of the coupon so it will contact the solder. The "Top Foil" T/C is inserted into the coupon near the top surface.

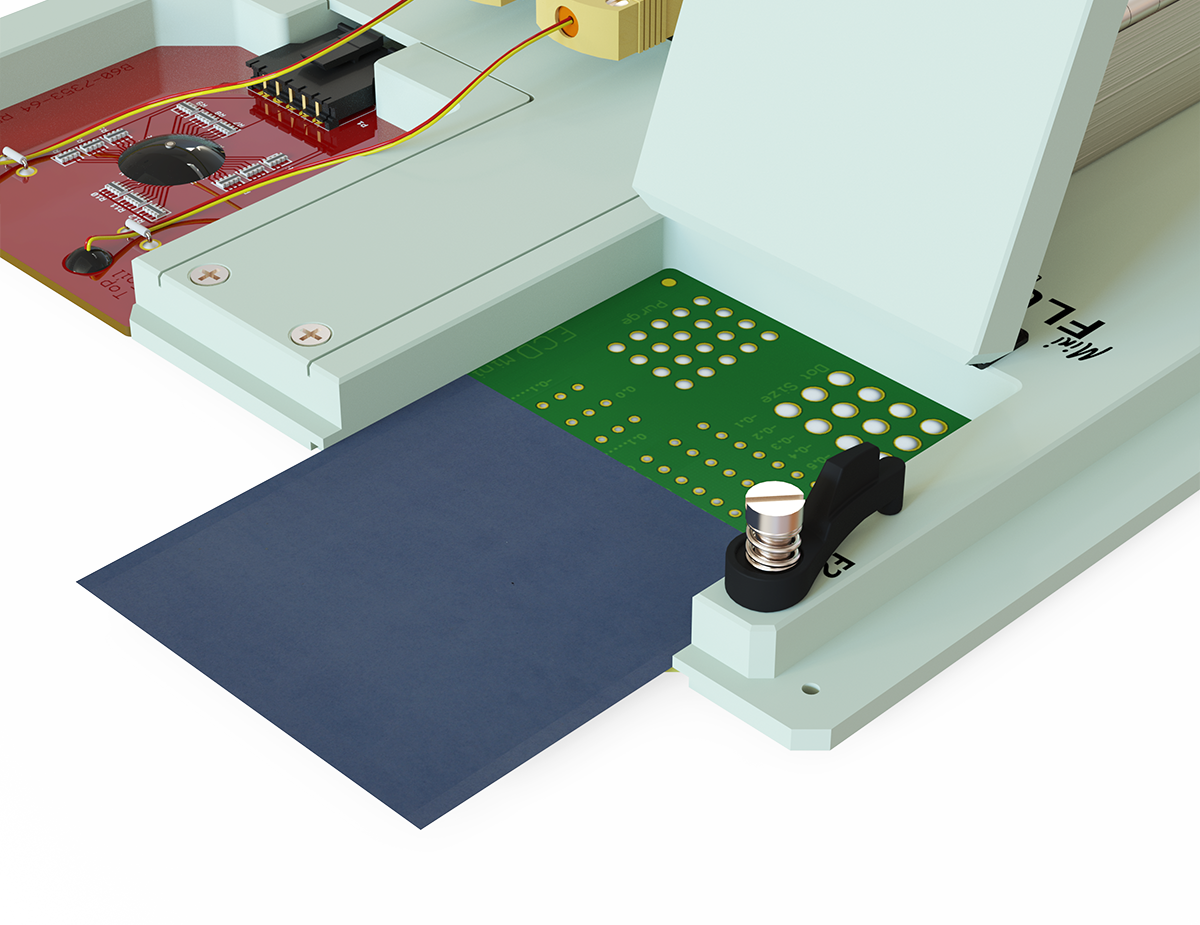

•Mini Fluxometer®: Test mesh and flux specific test paper help identify problems with accuracy and penetration. Kit includes Test papers for water-based, acid and alcohol-based fluxes.

The SelectiveRIDER® includes two Test Mesh types; V-Gauge Mesh (Vernier) and UP Mesh (Uniformity and Penetration).

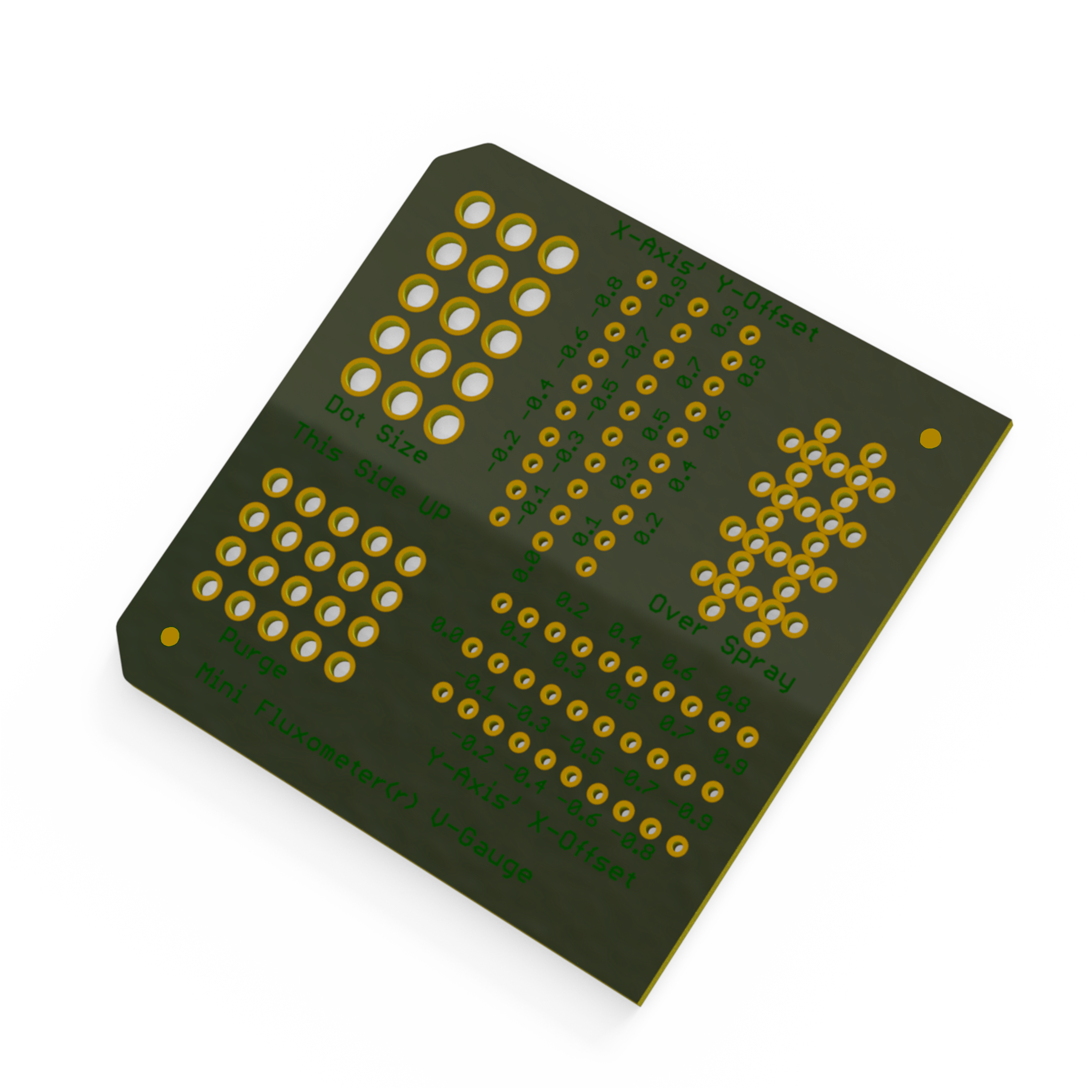

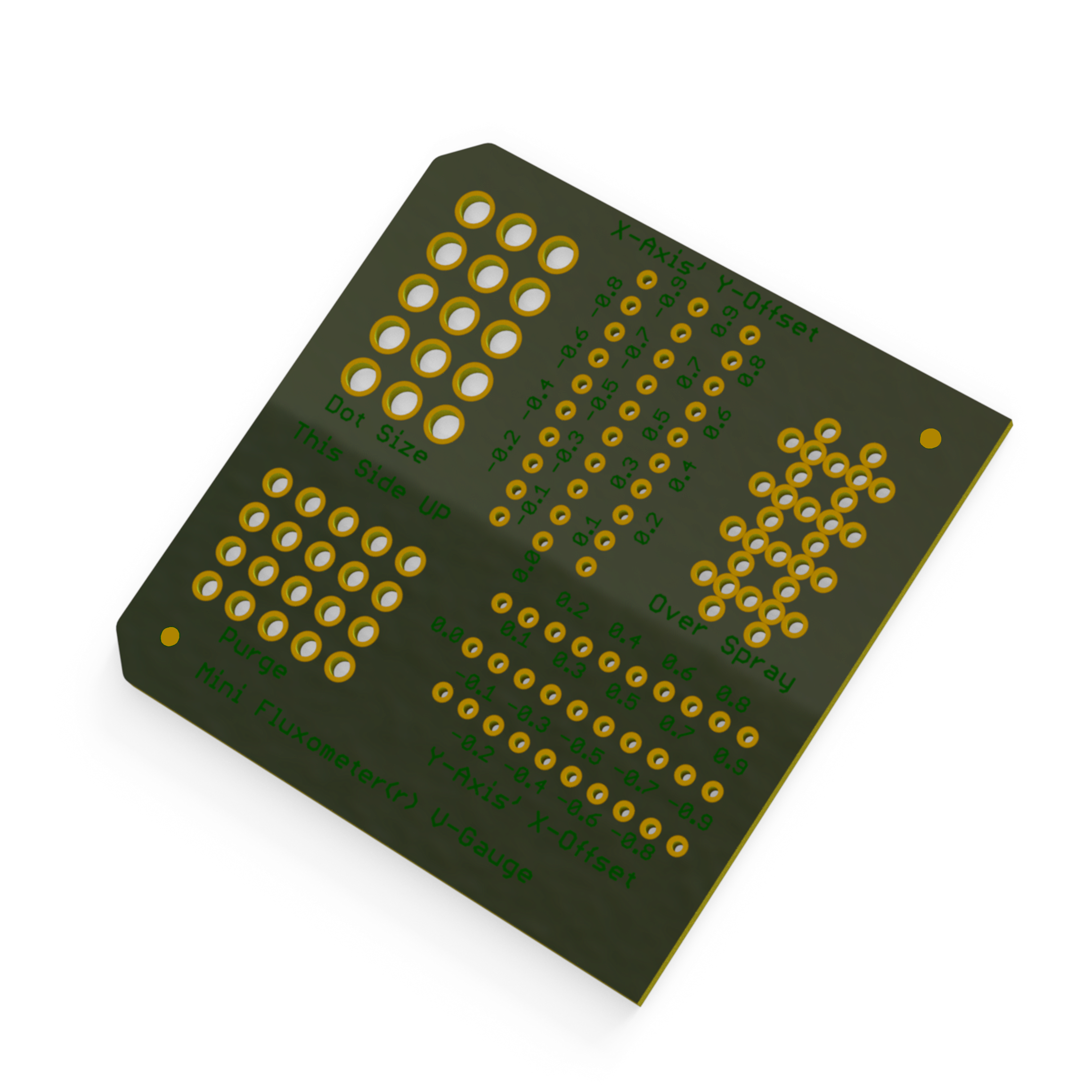

V-Gauge Mesh (Vernier)

Click to zoom

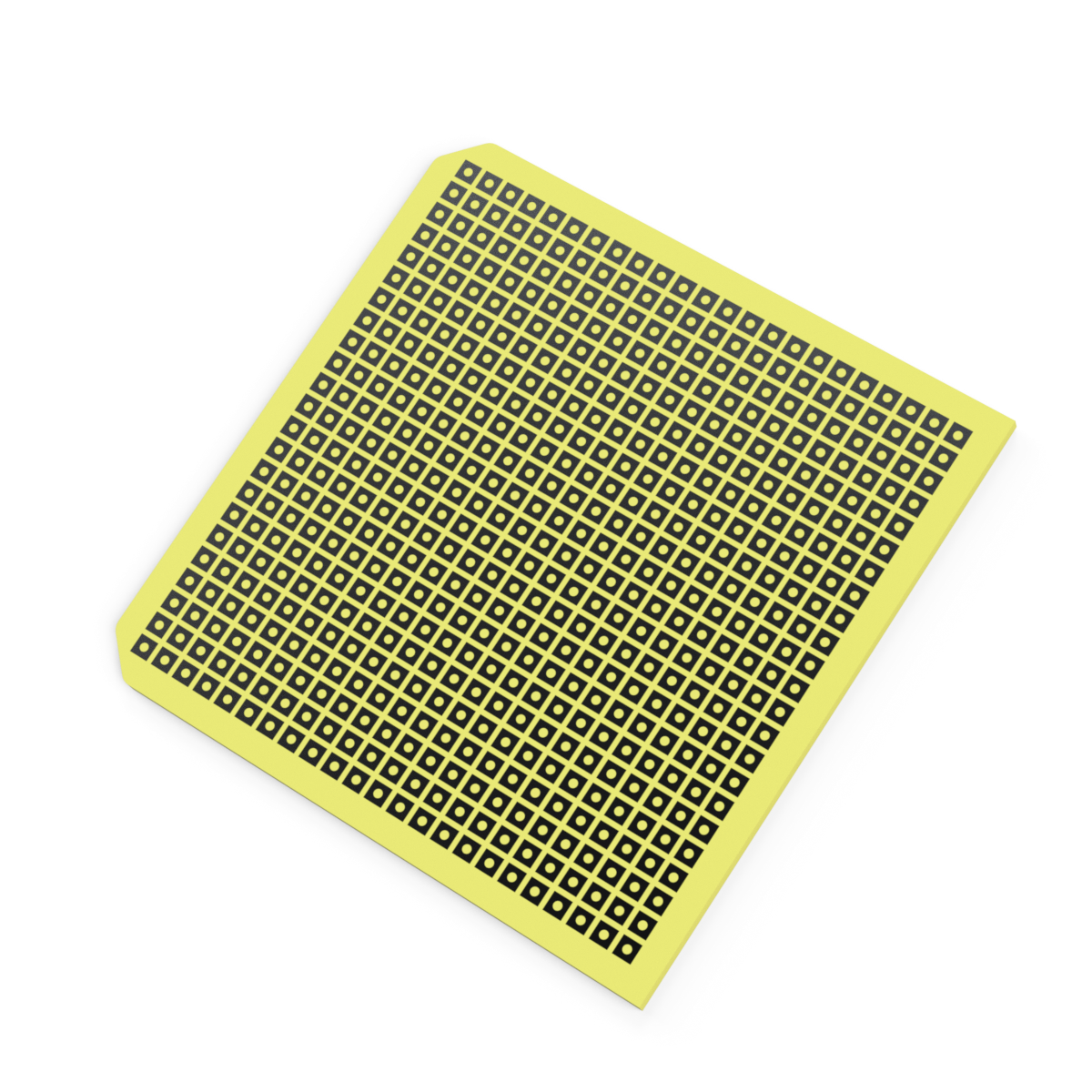

UP Mesh (Uniformity and Penetration)

Click to zoom

What does it measure:

•Dispense accuracy (X and Y)

•Indicates blocked/unprimed spray head

•Confirms dot size

•Illustrates under/overspray

What does it measure:

•Flux application patterns and uniformity

•Flux hole penetration

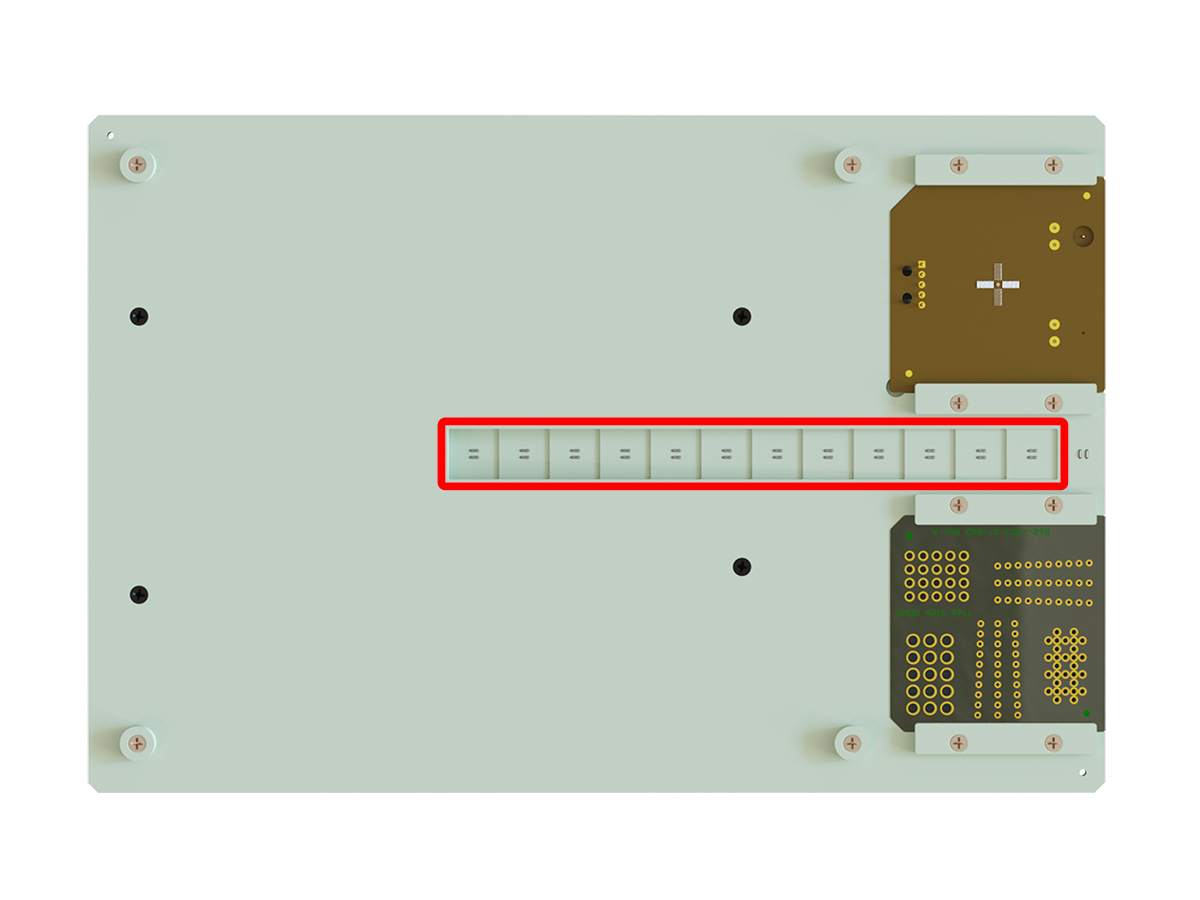

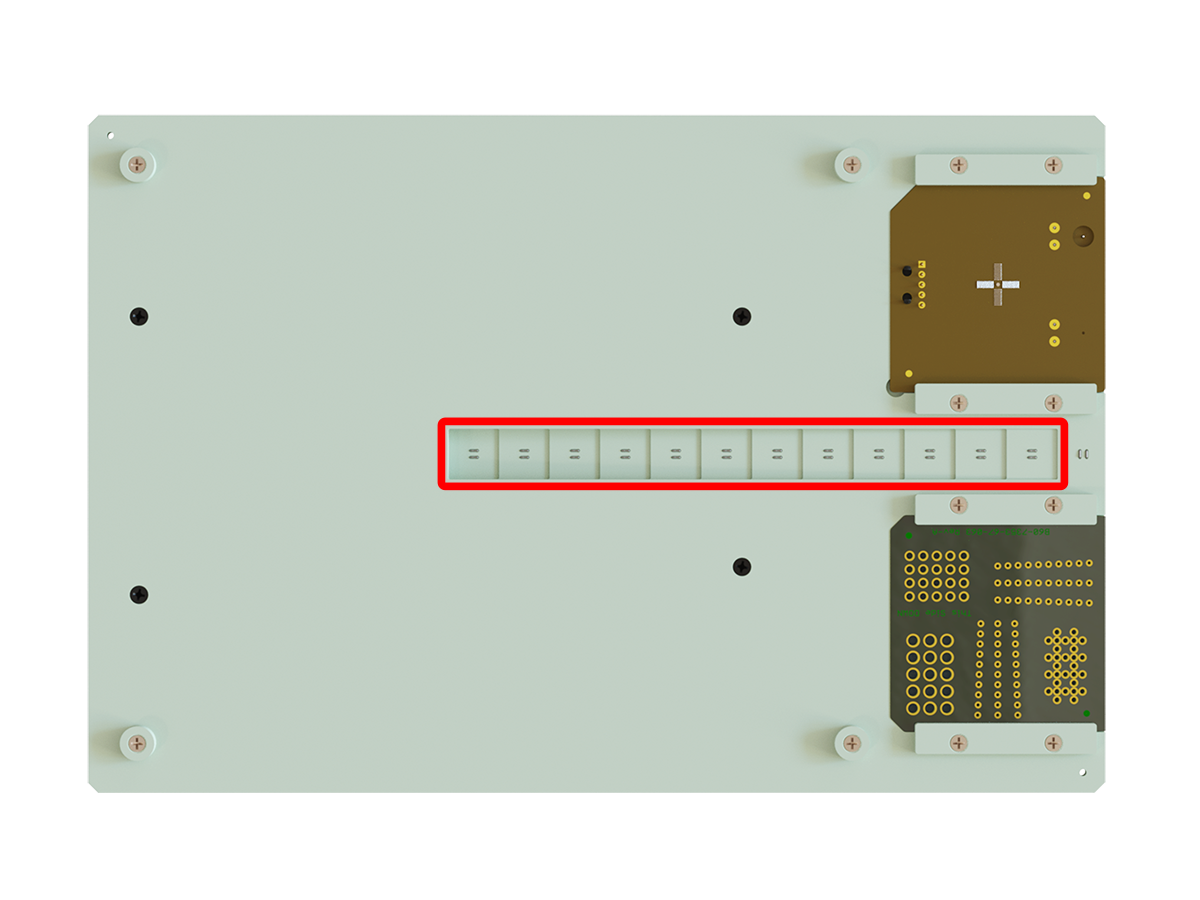

•Height Sensor: Measures fountain height as referenced from the bottom of the pallet.

Internal Features:

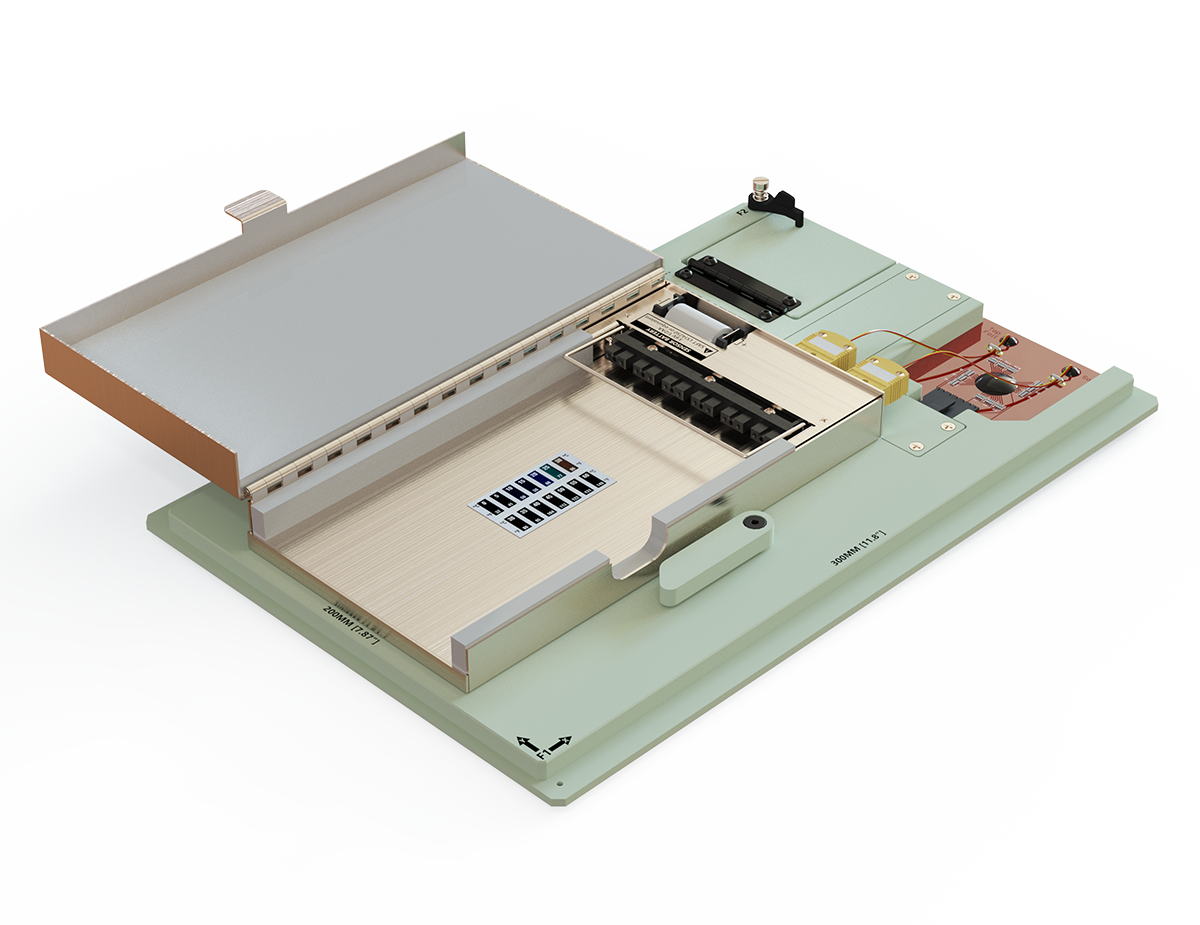

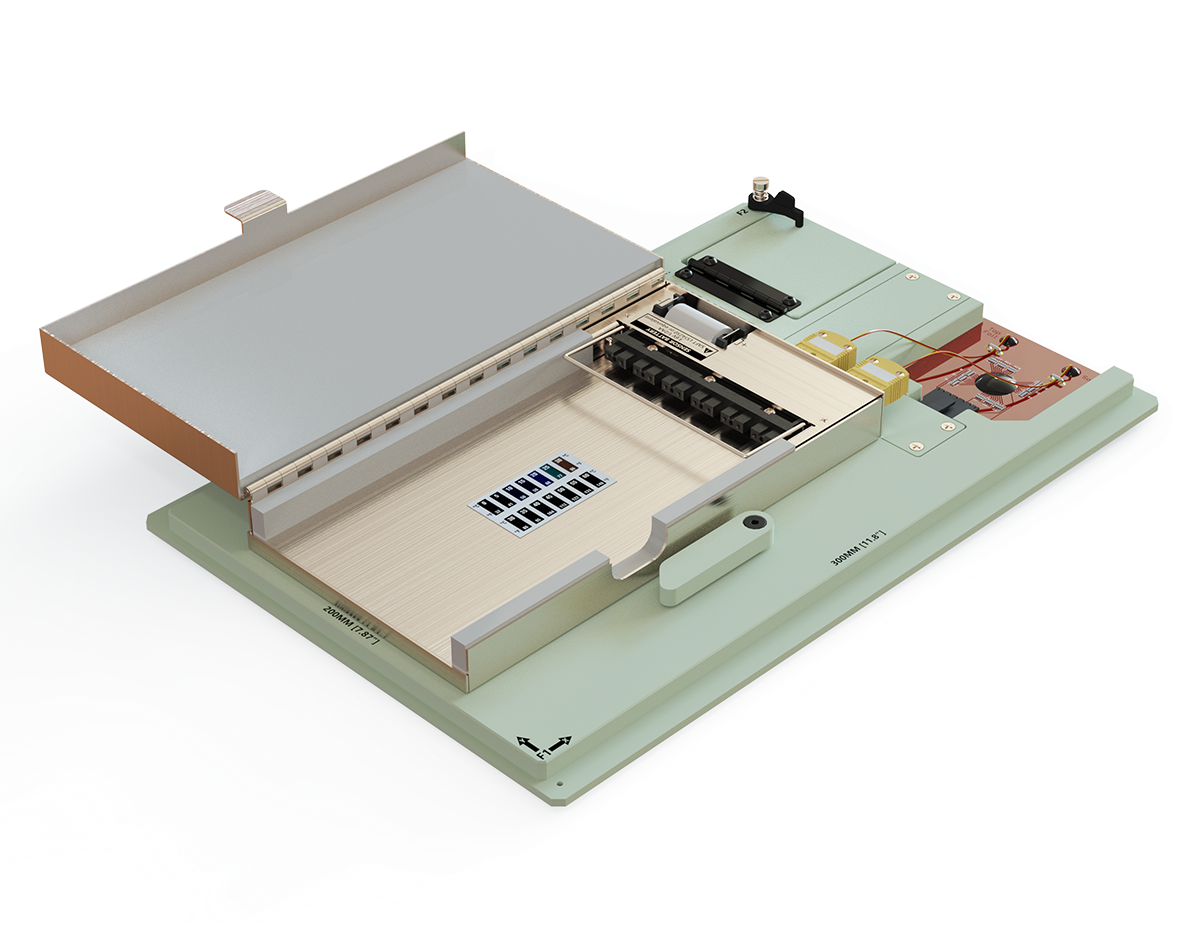

selectiverider_(open)

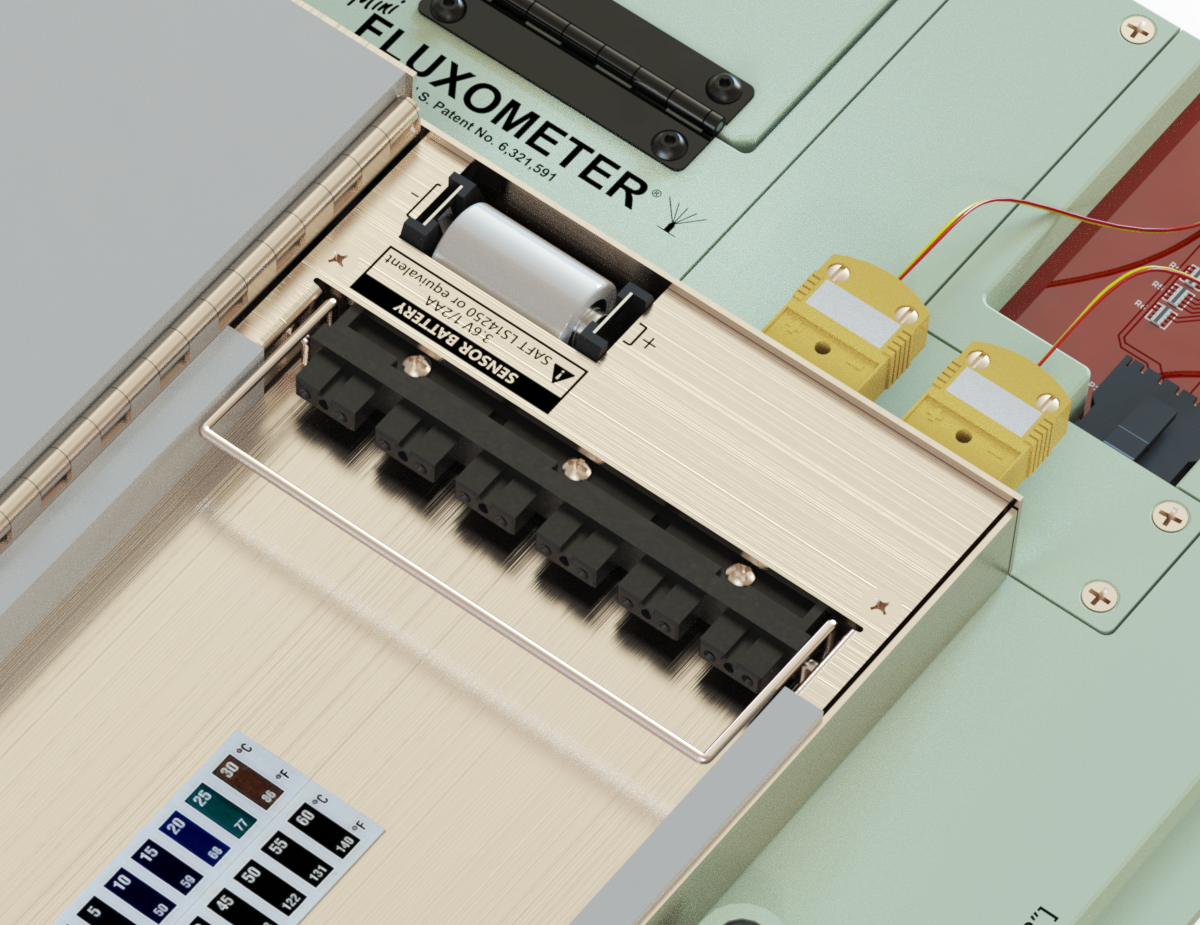

•Connector bridge: The M.O.L.E. Profiler connects to a single connection for easy IN/OUT. This connection gathers all the needed measurements from the pallet sensors.

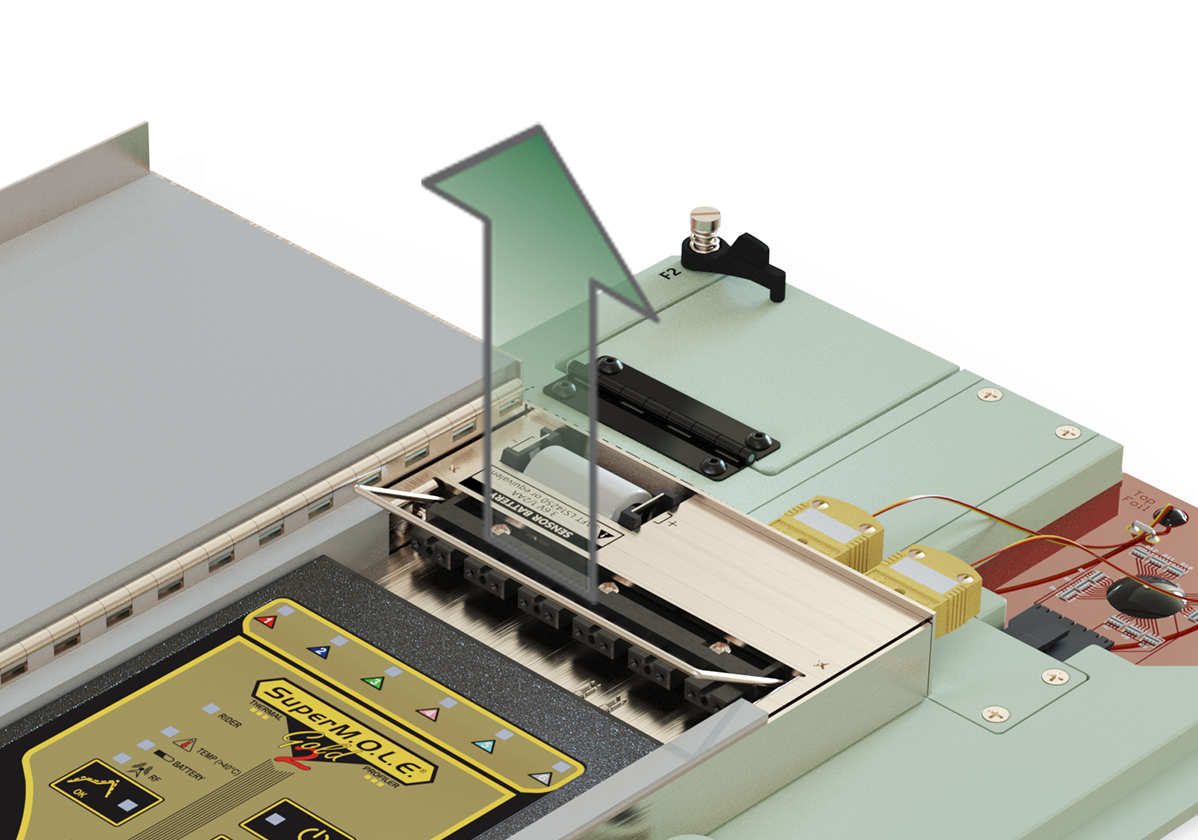

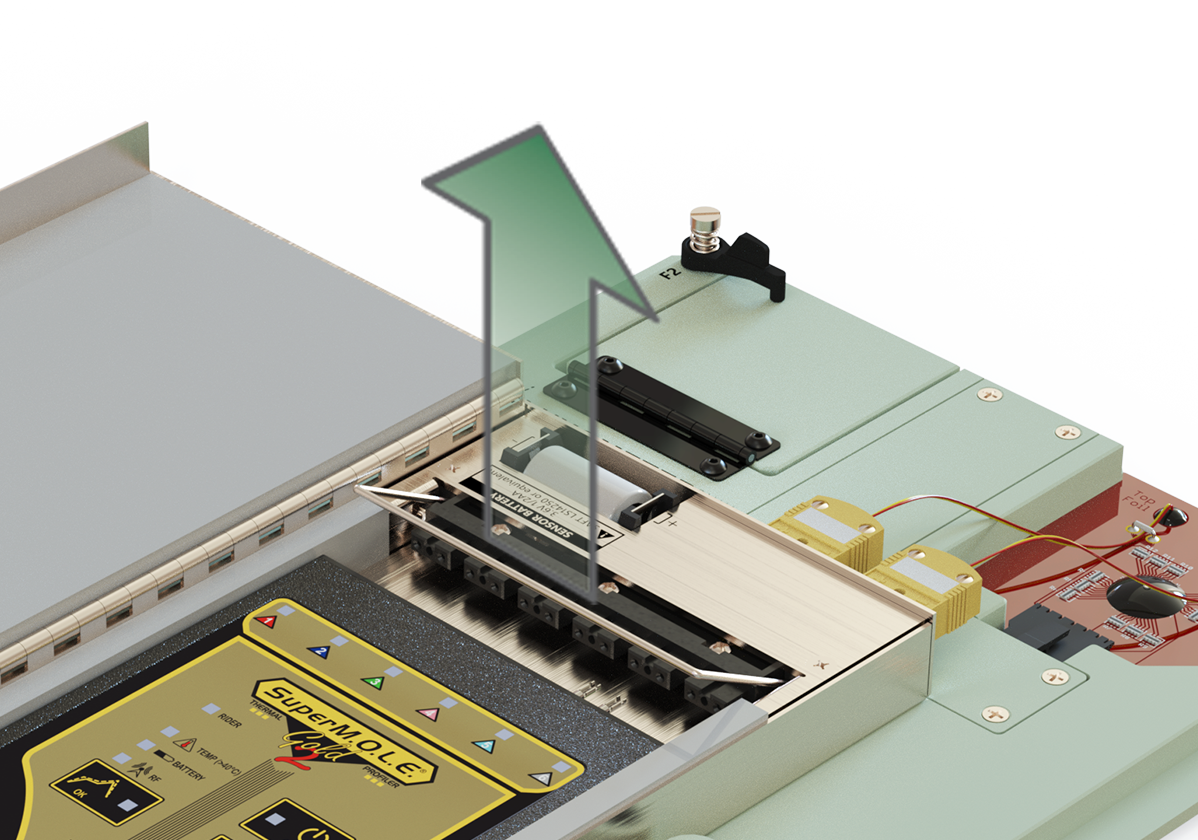

•Extractor handle: This handle assists in the removal of the M.O.L.E. Profiler.

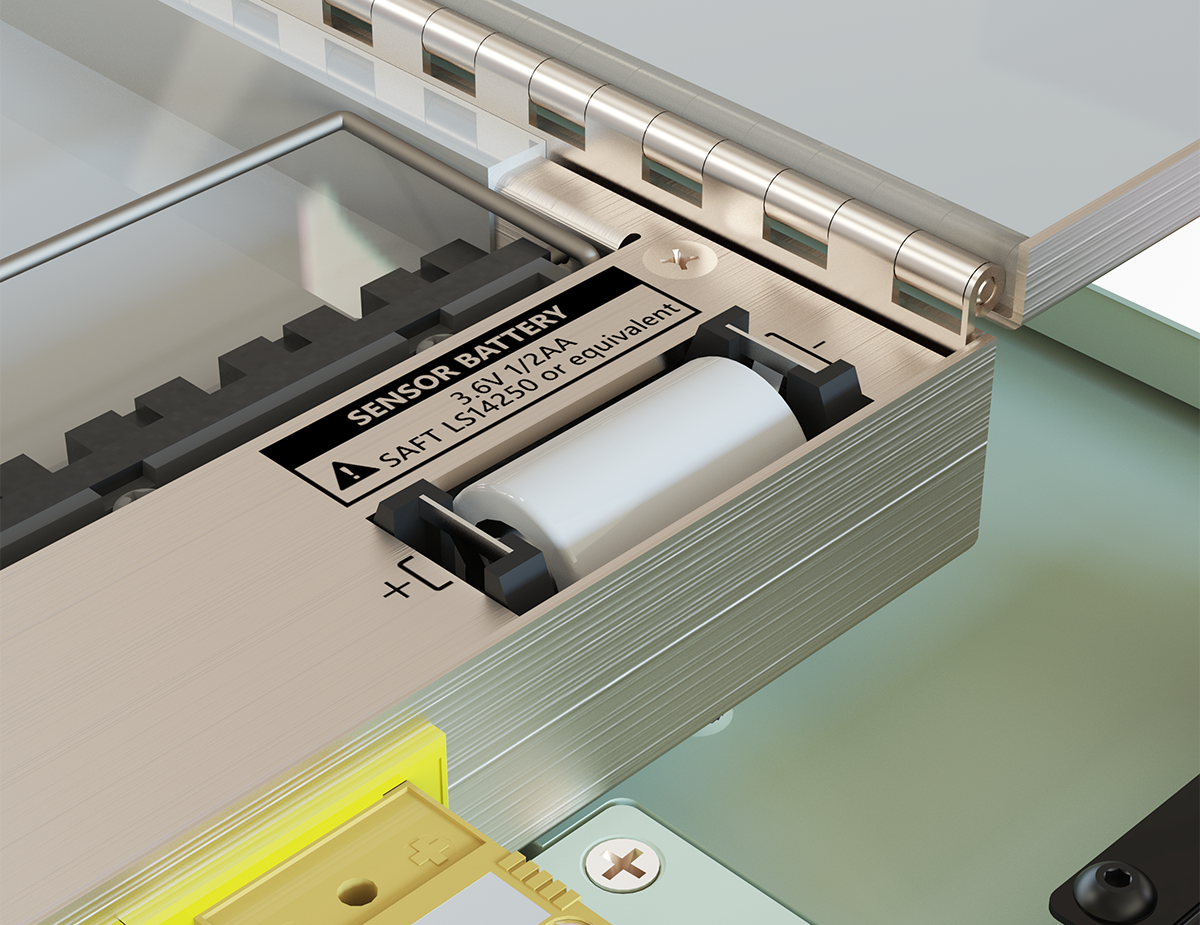

•Sensor battery: This is the power source for the pallet sensors.
