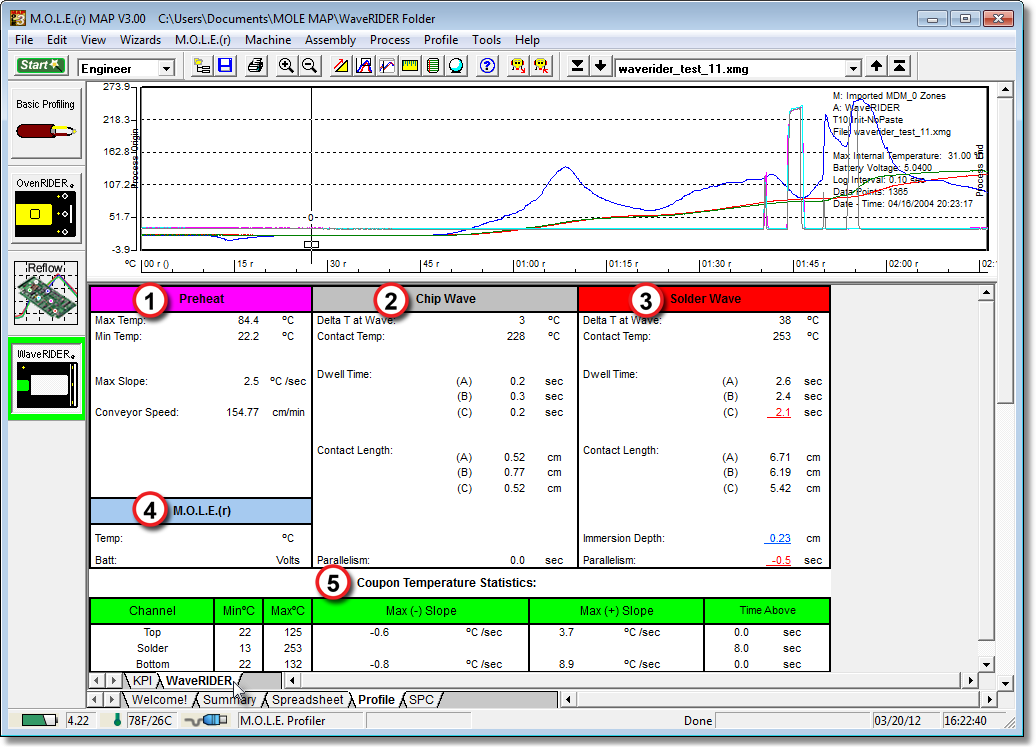

The WaveRIDER Data Table is specialized for wave solder machine applications. The Group Parameters on the data sheet are color coded so when they are viewed on other Page Tabs they can be easily associated with the Label Parameters.
WaveRIDER Data Table features:
| 1) | Pre-heat Parameters and Conveyor speed |
| 2) | Chip Wave Parameters (Blank column if there is no chip wave) |
| 3) | Solder Wave Parameters |
| 4) | M.O.L.E. Internal Status |
| 5) | Overall Coupon Parameters |
Refer to topic Measurement Definitions for detailed Parameter definitions.
|
If a parameter has no value (blank) that means that there was insufficient contacts detected to give a complete report. |
