This section defines how each solder machine parameter is measured and or calculated:

Oven Ambient:

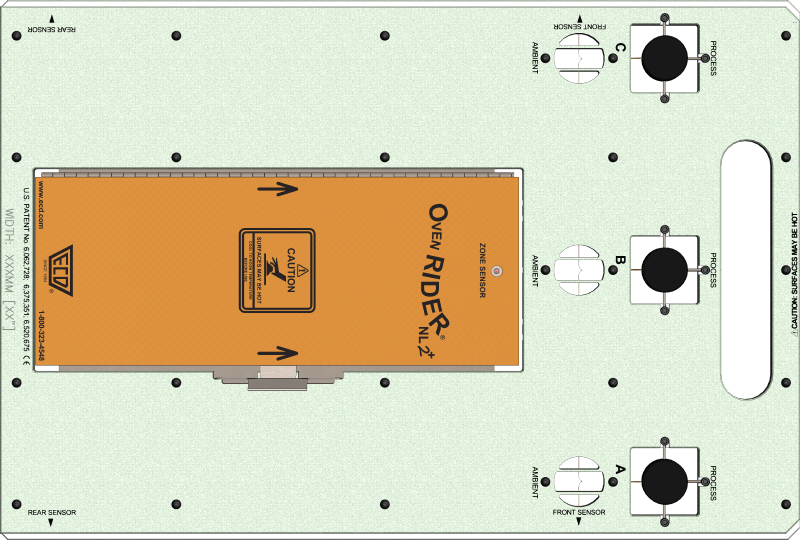

•Start Temp: (A), (B) and (C) Temperature of the ambient sensor (A), (B) and (C) at the first data point measured after OvenRIDER® NL 2+ is started.

•Peak Avg.: (A), (B) and (C) The highest zone temperature (Average) measured on Ambient Sensor (A), (B) and (C)*.

Oven Process:

•Start Temp: (A) (B) and (C) Temperature of Process Sensor (A) (B) and (C) first data point measured at the start of zone 1 (Process origin).

•Delta: (A) (B) and (C) Temperature change seen by Process Sensor (A) (B) and (C) from beginning of zone 1 (Process origin) and end of last zone (Tzone(n) end - Tzone1begin.

•Conveyor Speed: Speed of conveyor in inches or centimeters per minute. Measured from the difference between front and rear zone boundary sensors.

•Zones: Number of zones detected or manually defined.

M.O.L.E.:

•Temp: Internal temperature of the M.O.L.E. Profiler at the end of the run.

•Batt: The battery voltage of the M.O.L.E. Profiler at the time of the last data sample.

Zone Data:

•Time: Time spent in each zone.

•Avg. Temp: (A) (B) and (C) Average of the Ambient Sensor (A) (B) and (C) temperatures within the zone.*

•Process: (A) (B) and (C) Temperature change seen by Process Sensor (A) (B) and (C) from the beginning of the zone to the end. (Tend - Tbegin).
