This command controls the scale of the Time (X) axis on the Data Graph.
|
This is available when in MAP is in Engineer Mode. View Menu>Mode>Engineer |
.png "Important Information")
To select a Time (X) scale:
| 1) | On the Profile menu, click Set Time (X) Scale. |
| 2) | Select the scale Type and Distance units. |
| 3) | Click the OK command button to accept the changes, or Cancel to discard any changes. |
|
|

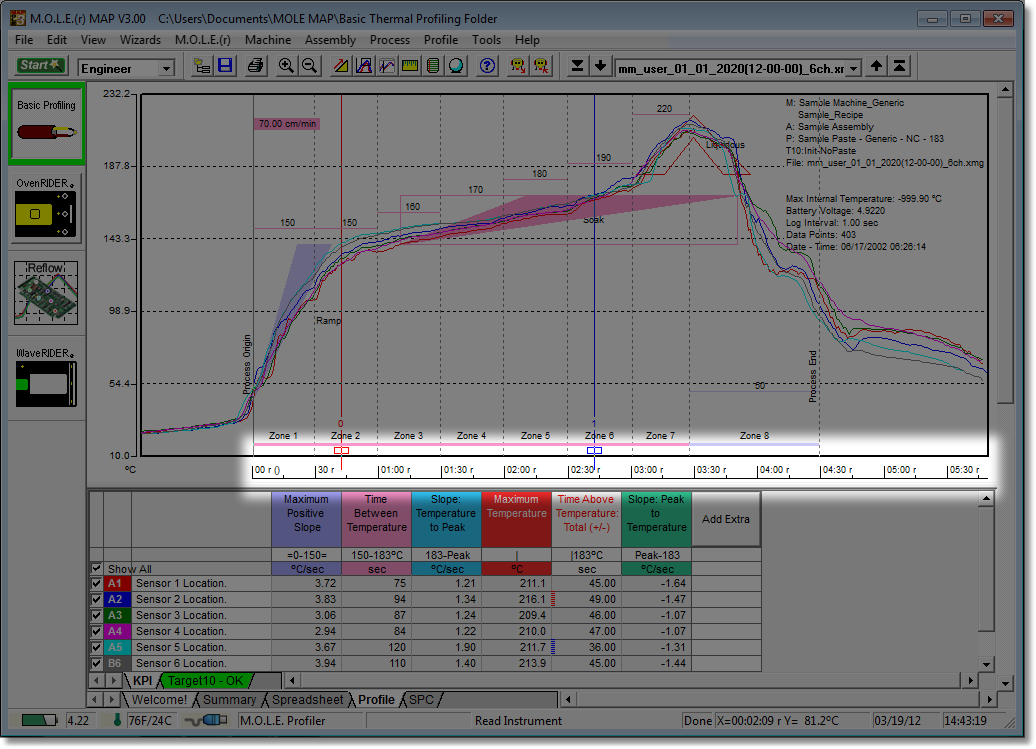

Relative Time Scale |

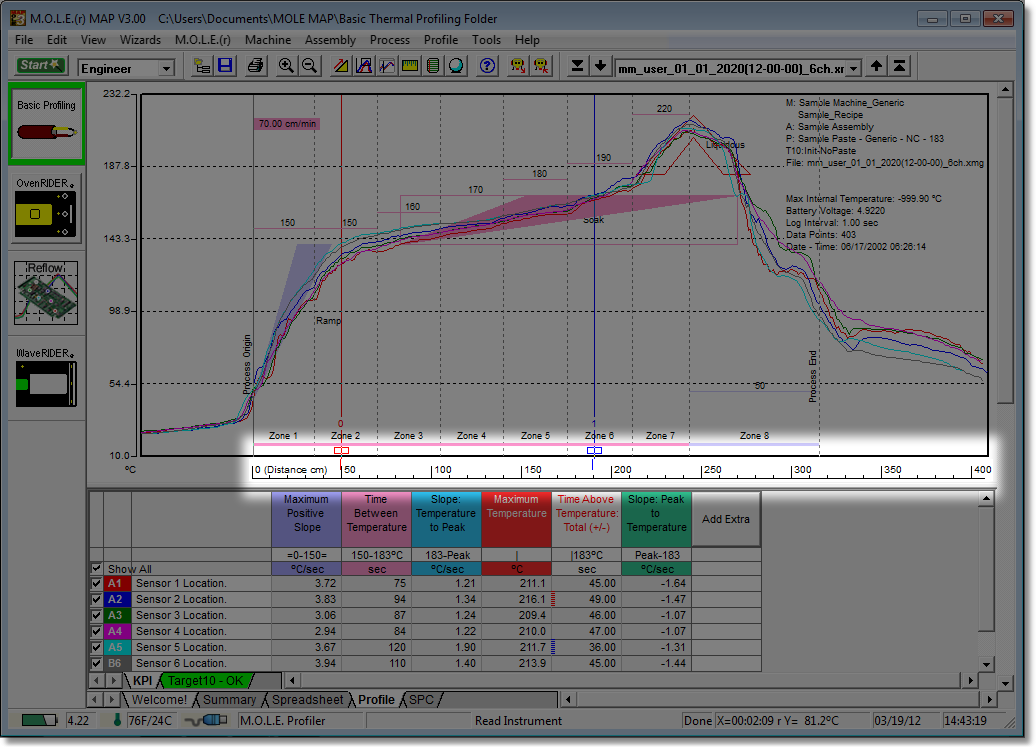

Distance Scale |
|
|
Points Scale |

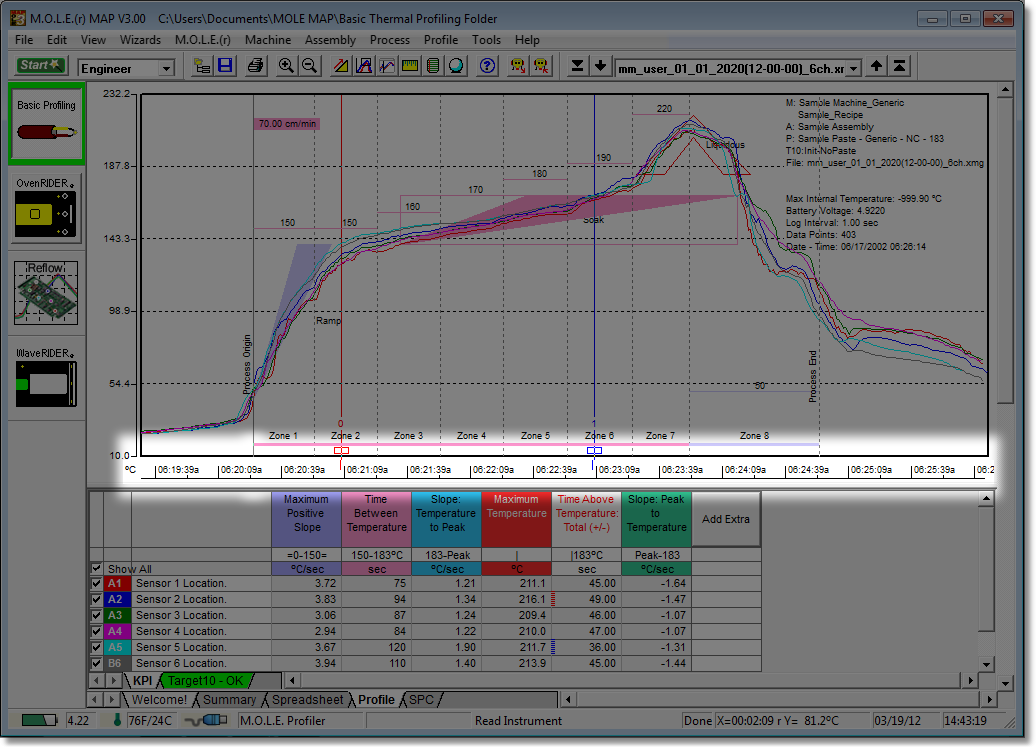

Absolute Time Scale |
|
This command can also be accessed by right-clicking the scale on the Data Graph and select Set Time (X) Scale from the shortcut menu. |
