If sensors are placed so they enter and exit machine zones at different times, the resulting Data Plots lag behind one another. The Align Profile Peaks command automatically aligns the Time (X) axis maximum peak values for each Data Plot so the results can be easily compared during analysis.
|
This is available MAP is in both Engineer & Verify Modes. |
.png "Important Information")
To align profile peaks:
|
A conveyor speed must be set to properly use this command. Refer to topic Set Machine Information or Conveyor Speed Indicator for more details. |

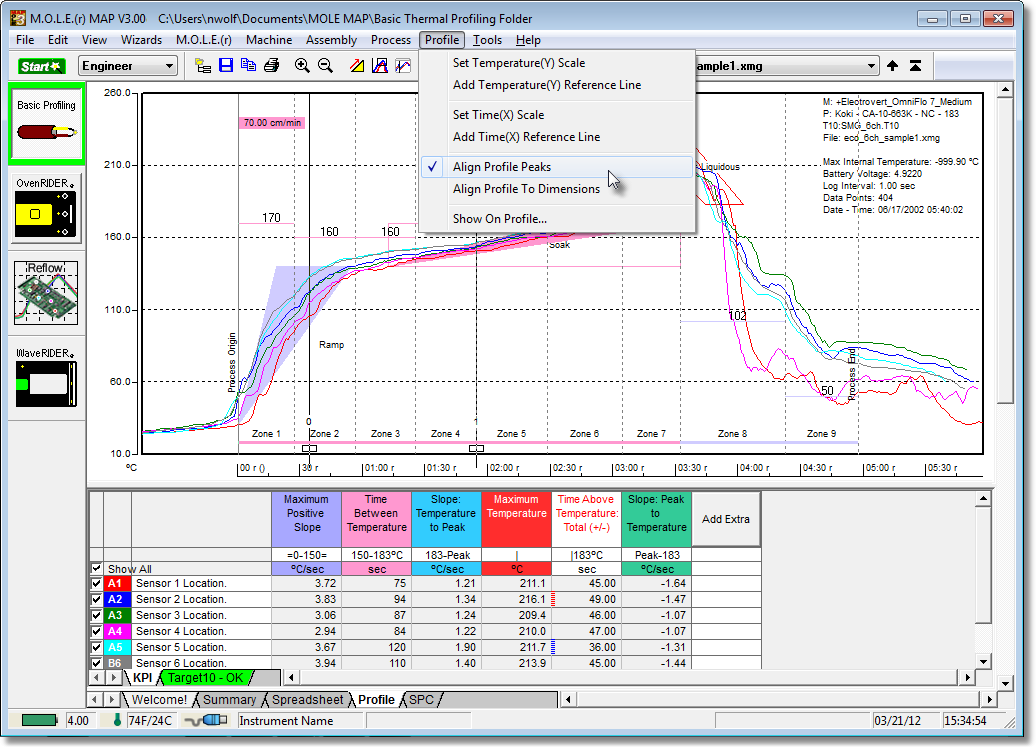

| 1) | On the Profile menu, click Align Profile Peaks the channel lag values are automatically calculated, and the Data Plots adjust to reflect them. A check mark appears to the left of the command indicating the software is in Align Profile Peaks mode. Repeat this step to disable the command. |
|
When downloading a data run from the M.O.L.E. Profiler, the default sensor alignment can be specified in the Profile tab of the Preferences dialog box. Refer to topic Profile for more information. |
