Assembly name can be displayed or hidden on the MAP data section of the Data Graph. These options are globally set for the current Environment.
|
This is available when in MAP is in Engineer Mode. View Menu>Mode>Engineer |
.png "Important Information")
To show assembly information on the Data Graph:

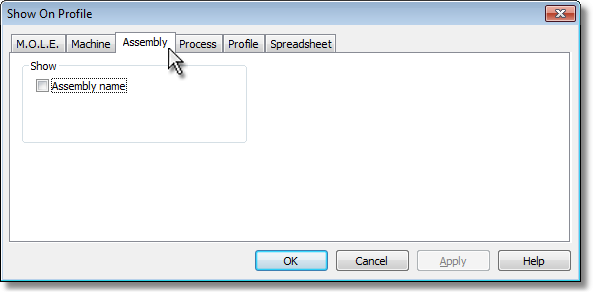

| 1) | On the Assembly menu, click Show on Profile. |
| 2) | Select or clear the Assembly name check box to display or hide it on the Data Graph. |
| 3) | Click the OK command button to accept, or Cancel to quit the command. |
