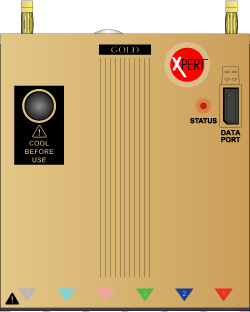

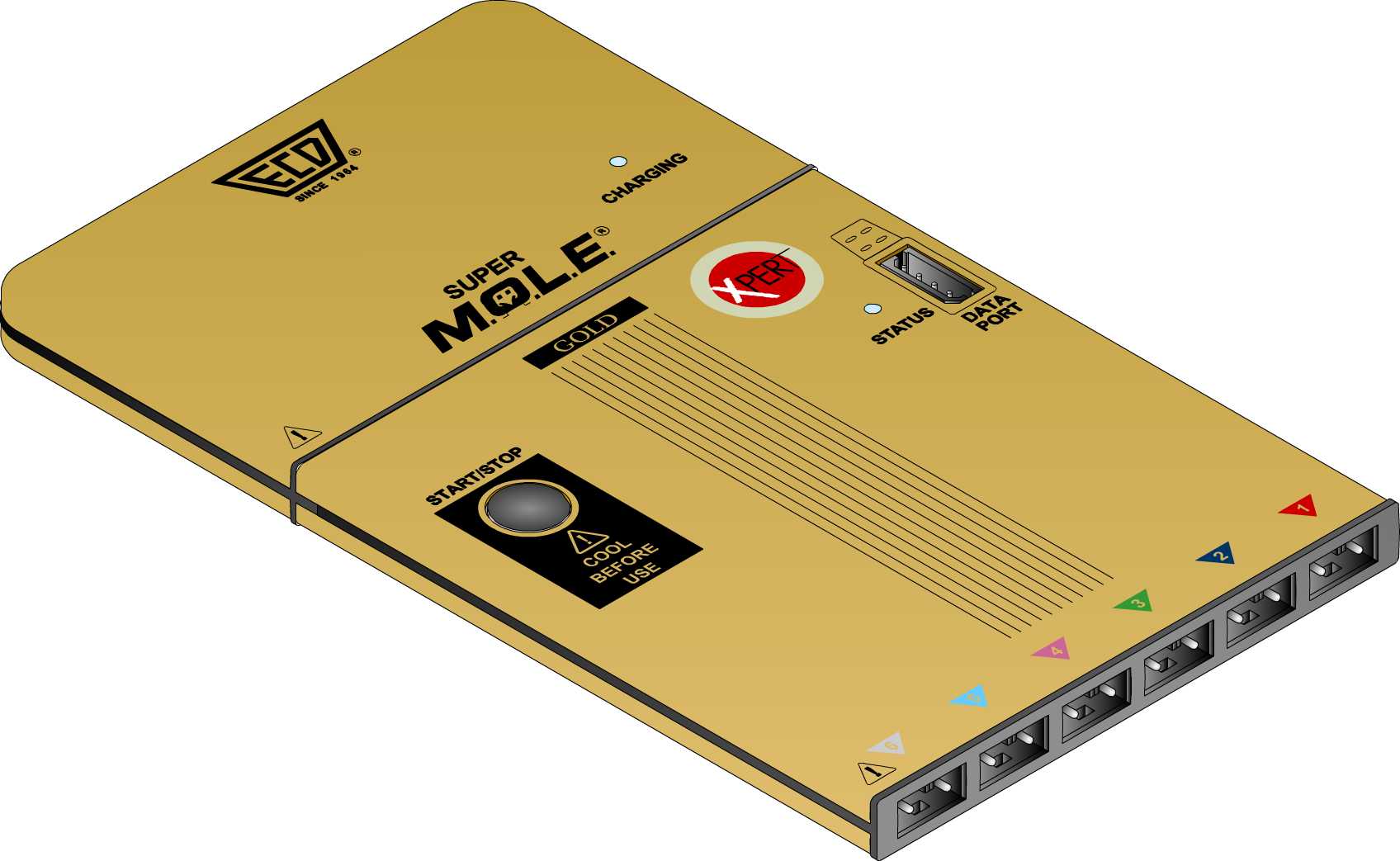

The SuperM.O.L.E.™ Gold Profiler is compact and durable. One end has input connectors for attaching up to (6) sensors and the other end is the removable Power Pack. It also has a four-pin Data Port, Start/Stop button, and an Activity LED.
Features/Functions:
•Thermocouple/Inputs:This is where Type “K” or “S” Thermocouples and the optional Relative Humidity sensors are connected.
•Start/Stop button: Allows the user to start and stop data collection.
•Power Pack: Supplies power to the Profiler.
•Data Port: Transfers data through the computer Interface cable to the computer.
•Activity LED: Indicates state of the SuperM.O.L.E.™ Gold Profiler.
State: |
Action: |
LED Color |
|
Power "ON" |
Indicates Profiler is "ON" and recording data |
Red (Flashing at log interval) |
|
Power "OFF" |
Indicates Profiler is not recording data |
No illumination |
|
Data Transfer |
Indicates data is being uploaded or downloaded |
Red (Steady Illumination) |
|
Reset Complete |
Indicates when a master reset has been occurred. |
Red (Quick flashing 2 sec) |
