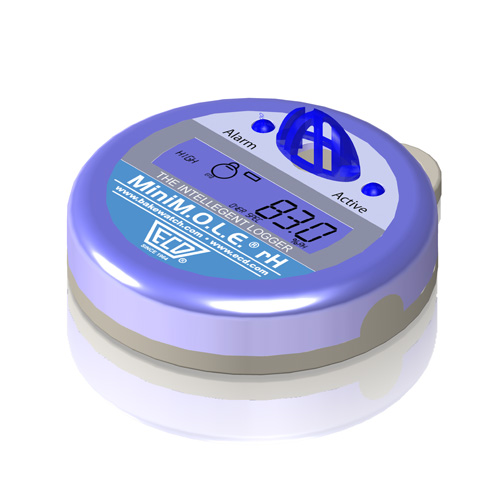

The MiniM.O.L.E.™ rH provides one Relative Humidity (rH) and one Temperature channel of static data logging, suitable for Dry Cabinet, manufacturing plant ambient monitoring. With LCD Display, Magnet start, 1 second to 10 day sample rate.
_500x500.jpg "SuperM.O.L.E. Gold")
Features/Functions:
•Start Switch: This is an internal switch that is triggered when using the Start Magnet.
•Relative Humidity (rH) & Temperature Sensors: These are an external Relative Humidity Type “K” Thermocouple sensor. Both are protected by an plastic grid.
•Data Contacts: When connected to the USB Dock Station, these contacts transfers data to the computer.
•LCD Display: Provides the feature of displaying the last log reading or current reading without downloading. Refer to the table below for complete features.
State: |
Action: |
LED |
LCD Display |
Ready |
Indicates Profiler is "Ready" to record data |
Quick flashing
|
|
Start |
Indicates Profiler is starting recording process. |
Quick flashing |
|
Recording (rH) |
Indicates Profiler is recording rH data. |
Flashing at log interval |
|
Recording (Temperature) |
Indicates Profiler is recording temperature data. |
Flashing at log interval |
|
End |
Indicates Profiler recording process has ended |
No illumination |
|
Data Transfer |
Indicates data is being uploaded or downloaded |
Steady Illumination |
rH/Temperature display |
