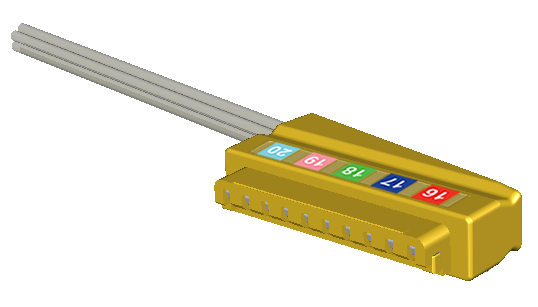

Up to (20) sensors can be attached to the MEGAM.O.L.E.™ 20 Profiler per data run. Four sets of five 0.005” K-Type thermocouple sensors are included in the Kit.
|
|
|
|

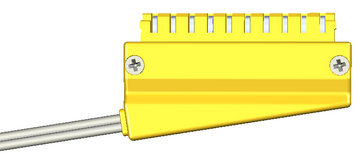

Bottom View |

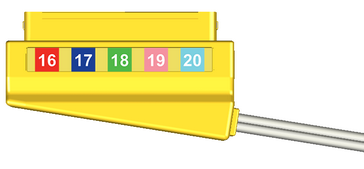

Top View |
Plug the sensor connector into the desired MEGAM.O.L.E.™ 20 Profiler channel block. The software helps keep a record of the channel number associated with the location and the type of sensor. The thermocouples correlate to the channels in the software so the sensors can be easy identified.
|
ECD also offers a wide selection of sensors and adaptors to meet the needs of many applications. For more information about optional sensors for specific applications, refer tothe Service and Troubleshooting>How to Get Additional Help topic for your M.O.L.E. thermal profiler for contact information. |
