The Main Module is the controller unit of the MEGAM.O.L.E.™ 20 Profiler. This module stores the recorded data runs that can be downloaded to a computer through the Data Port located on the Power Pack battery.
|
To configure and download data from the Main Module, the Power Pack must be connected to the unit. Refer to topic Power Pack for more information. |

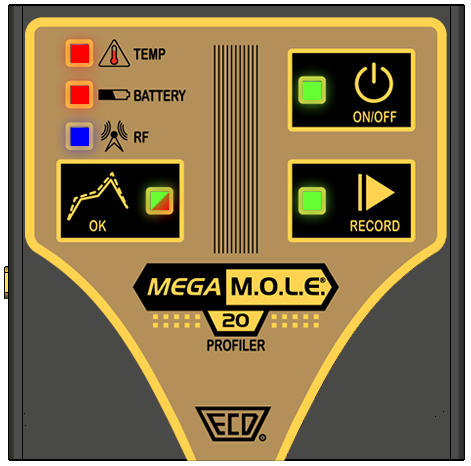

.png)
Features/functions:
•Interface Connectors: There are two interface connectors in the Main Module. The front connector interfaces with the I/O Pod and is where the converted digital data from the I/O pod is transferred to the Main Module. The rear connector interfaces with the removable Power Pack and power and signal data is transferred.
•Alignment Sockets: These are where the mating I/O Pod and Power Pack alignment pins are inserted.
•RF Antenna Connector: This is where the Optional RF antenna is connected.
•Buttons: ON/OFF, Record & OK.
Button: |
Action: |
ON/OFF |
Turns Main Module "ON/OFF". |
Record |
Starts/Stops Main Module recording data. |
OK |
Invokes "OK" process where the last recorded profile is compared to pre-configured criteria resulting in a "Pass" or "Fail" mode. |
•Activity Indicators: These are LED's that indicate what state the MEGAM.O.L.E.™ 20 Profiler is in. Refer to the illustration and table below.
LED: |
Action: |
LED Color |
|
ON/OFF |
Indicates Main Module is "ON" and idle |
Green (Solid) |
|
Record |
Indicates Main Module is recording data |
Green (Flashing) |
|
OK |
Indicates recorded profile passes pre-configured criteria using the Target 10-OK tab in the software. |
Green - Pass (Solid) Red - Fail (Solid) |
|
Temp(erature) |
Indicates if the internal temperature is at or above a certain threshold. |
Red (Solid) >40°C |
|
Battery |
Indicates when the Power Pack voltage is low |
Red (Solid) <3.0V |
|
RF (Radio Frequency) |
Indicates when Main Module and RF receiver is transferring data |
Blue (Flashing) |
