Instruments > M.O.L.E. EV6 > Equipment > Bluetooth® Wireless Option

The Bluetooth® wireless option for an M.O.L.E. EV thermal profiler produces real time profiles for immediate data collection. The Transmitter is an built-in component that when used with the antenna sends data via Bluetooth® technology to the transceiver that is connected to a computer.

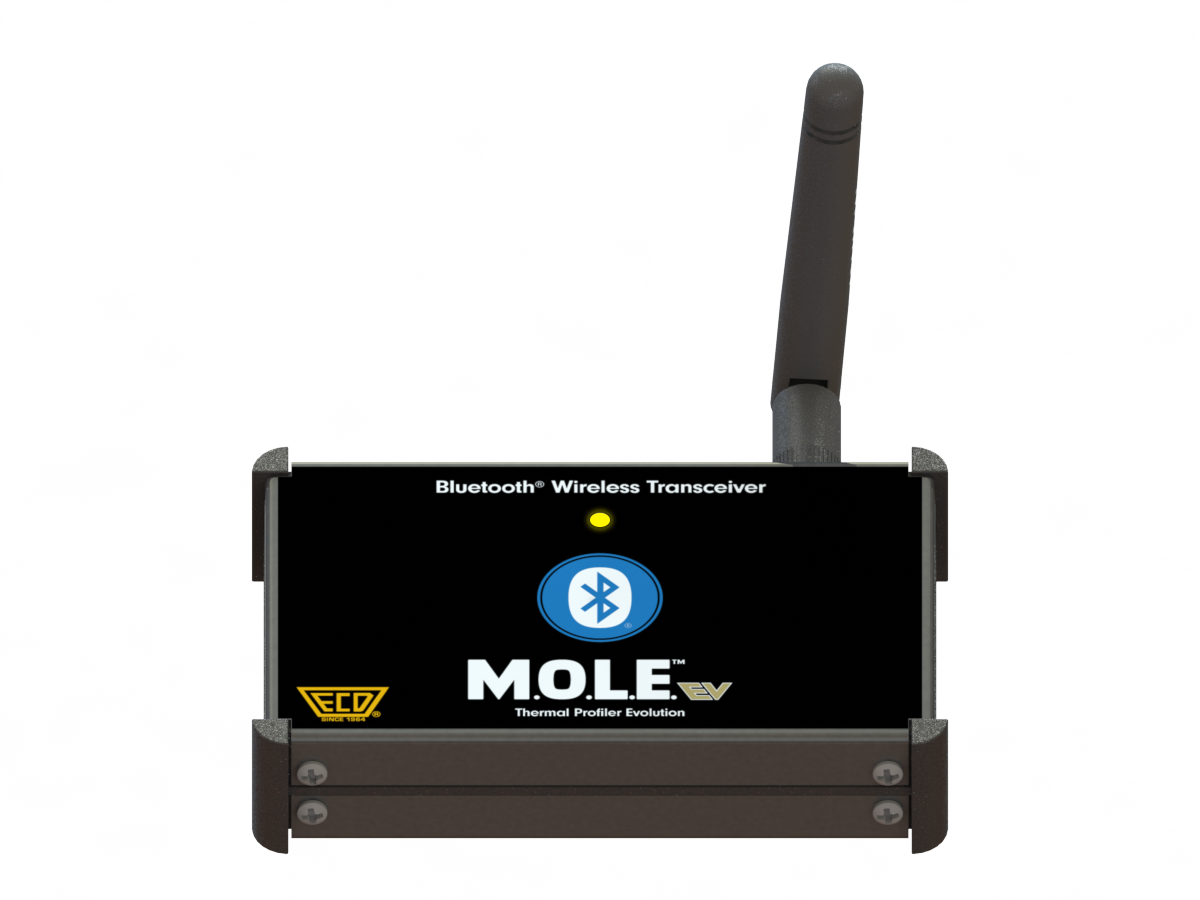

Transceiver:

Transmitter and receiver (Transceiver) used to create the wireless link to the M.O.L.E, thermal profiler.

E61-3800-95_(0000)

Antenna:

This is the high temp Teflon antenna.

E63-3800-11_(0000)

Features/functions:

mole_ev_transceiver_features

•Activity Indicator: These are LED's that indicate what state the transceiver is in. Refer to the illustration and table below.

LED Color:	Solid:		Flashing
Yellow	Indicates Power is ON and unit is available for a new connection with a M.O.L.E. thermal profiler.		Indicates the pairing process has been invoked to establish a new connection with a M.O.L.E. thermal profiler.
Yellow	Indicates that a wireless communication connection has been established and is in data transfer mode.		Indicates when the transceiver is searching for the last paired M.O.L.E. thermal profiler.
Red	-	-	System Failure. Disconnect unit from the PC and contact ECD Support.

•Activity Indicator: These
